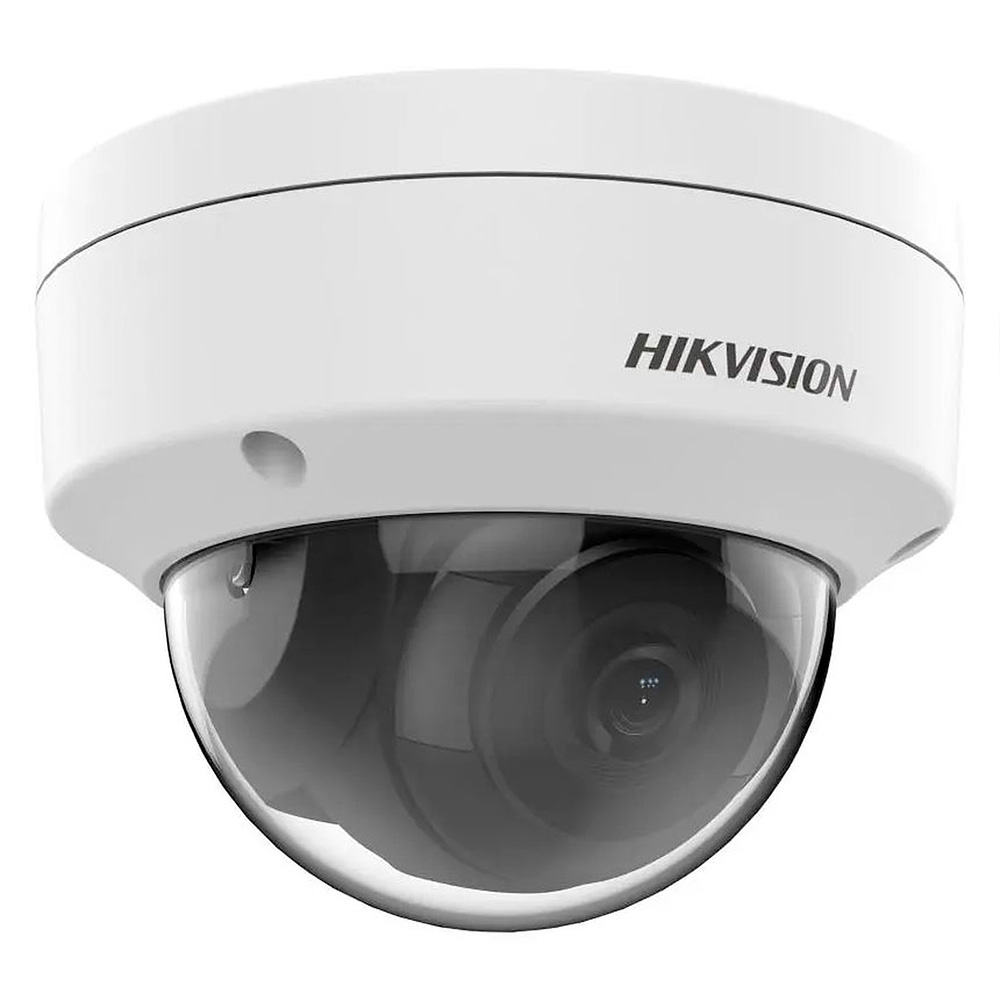

Camera
Image Sensor 1-2.9a Progressive Scan CMOS
Max. Resolution 1920 × 1080
Shutter Time 1-3 s to 1-100000 s
Min. Illumination Color: 0.01 Lux @ (F2.0 AGC ON) B-W: 0 Lux with IR
Day - Night IR cut filter
Angle Adjustment Pan: 0° to 355° tilt: 0° to 75°

Lens
Lens Type Fixed focal lens 2.8 and 4 mm optional
Focal Length - FOV
2.8 mm horizontal FOV 104° vertical FOV 58° diagonal FOV 123°
4 mm horizontal FOV 81° vertical FOV 43° diagonal FOV 96°
Lens Mount M12
Iris Type Fixed
Aperture F2.0

DORI
2.8 mm D: 42 m O: 16 m R: 8 m I: 4 m
4 mm D: 57 m O: 22 m R: 11 m I: 5 m

Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm

Video
Main Stream
50 Hz: 25 fps (1920 × 1080 1280 × 720)
60 Hz: 30 fps (1920 × 1080 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480 640 × 360)
60 Hz: 30 fps (640 × 480 640 × 360)
Video Compression
Main stream: H.265+-H.265-H.264+-H.264
Sub-stream: H.265-H.264-MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile-Main Profile-High Profile
H.265 Type Main Profile
Bit Rate Control CBR-VBR
Region of Interest (ROI) 1 fixed region for main stream

Network
Security
Password protection complicated password watermark basic and digest
authentication for HTTP WSSE and digest authentication for Open Network Video
Interface security audit log host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S Profile T) ISAPI SDK
Protocols TCP-IP ICMP DHCP DNS HTTP RTP RTSP NTP IGMP IPv6 UDP QoS FTP SMTP
User-Host
Up to 32 users
3 user levels: administrator operator and user
Client iVMS-4200 Hik-Connect
Web Browser
Plug-in required live view: IE 10 IE 11
Local service: Chrome 57.0+ Firefox 52.0+

Wide Dynamic Range (WDR) Digital WDR
SNR = 52 dB
Day-Night Switch Day Night Auto Schedule
Image Enhancement BLC HLC 3D DNR
Image Settings
Rotate mode saturation brightness contrast sharpness gain white balance
adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10 M-100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and
vehicle)) video tampering alarm exception
Linkage Upload to FTP send email notify surveillance center trigger capture
General
Power
12 VDC ± 25-por-ciento 0.4 A max. 5 W Ø 5.5 mm coaxial power plug
PoE: 802.3af Class 3 36 V to 57 V 0.2 A to 0.15 A max. 6.5 W
Material Metal - Plastic
Dimension Ø 110.8 mm × 84.7 mm (Ø 4.4a × 3.3a)
Package Dimension 134 mm × 134 mm × 108 mm (5.3a × 5.3a × 4.3a)
Weight Approx. 520 g (1.1 lb.)
With Package Weight Approx. 720 g (1.6 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95-por-ciento or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95-por-ciento or less (non-condensing)
Language English Ukrainian
General Function Heartbeat anti-flicker mirror password protection password reset via email
Approval

EMC
FCC: 47 CFR Part 15 Subpart B
CE-EMC: EN 55032: 2015 EN 61000-3-2:2019 EN 61000-3-3: 2013+A1:2019 EN
50130-4: 2011 +A1: 2014
RCM: AS-NZS CISPR 32: 2015
IC: ICES-003: Issue 7
KC: KN32: 2015 KN35: 2015
Safety
UL: UL 62368-1
CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014-A11: 2017
BIS: IS 13252 (Part 1): 2010-IEC 60950-1: 2005
Environment
CE-RoHS: 2011-65-EU
WEEE: 2012-19-EU
Reach: Regulation (EC) No 1907-2006
Protection IP67: IEC 60529-2013 IK10: IEC 62262: 2002
