GPU

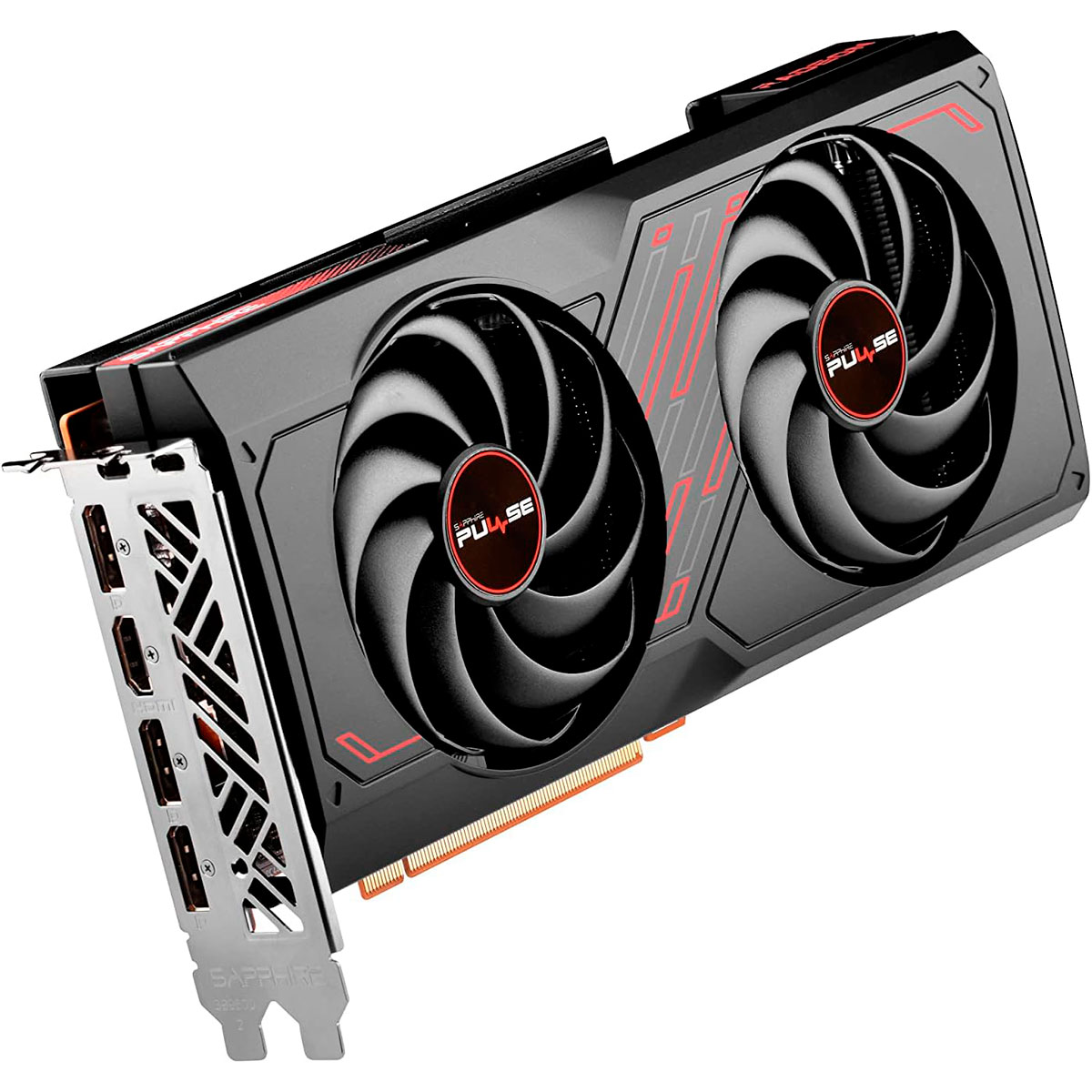

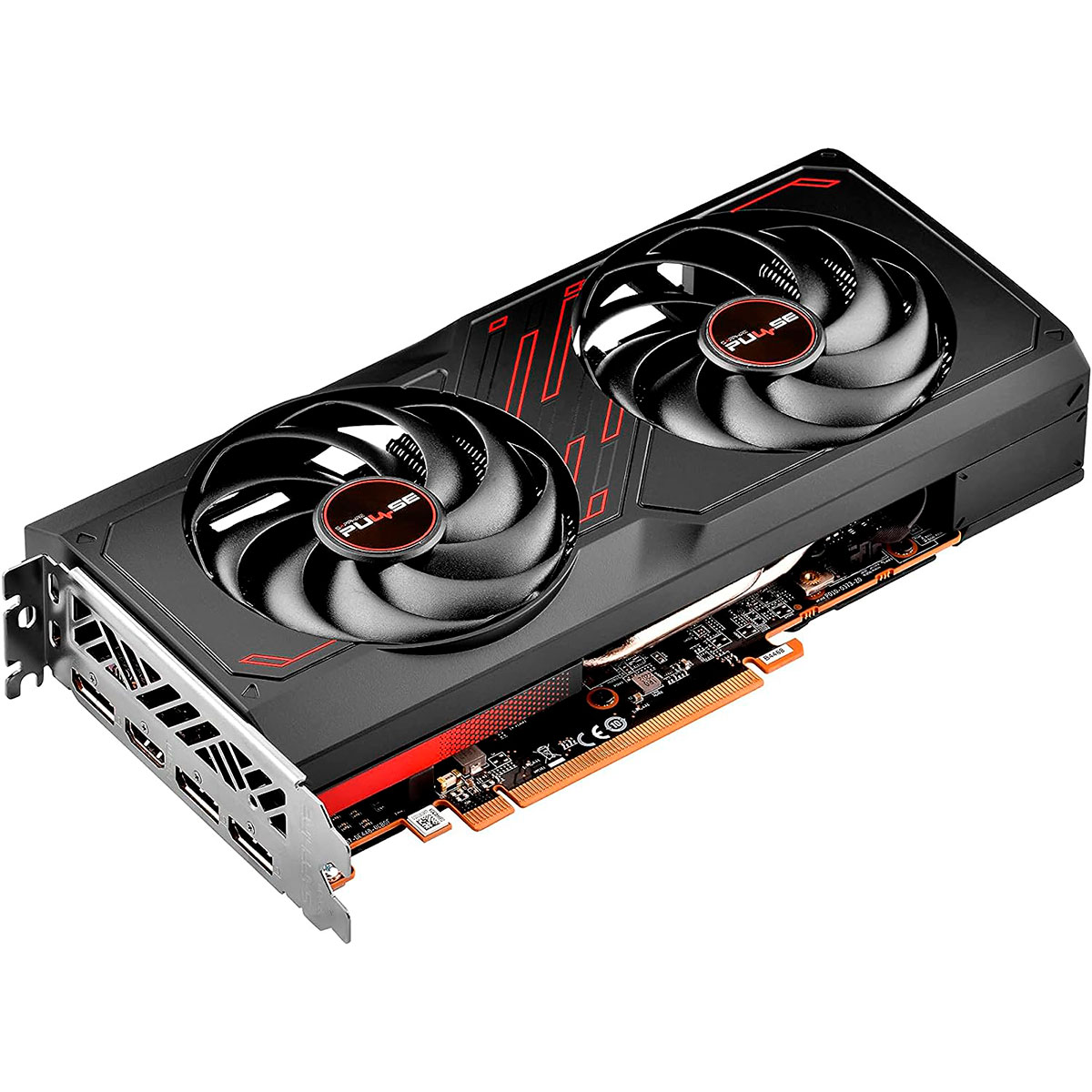

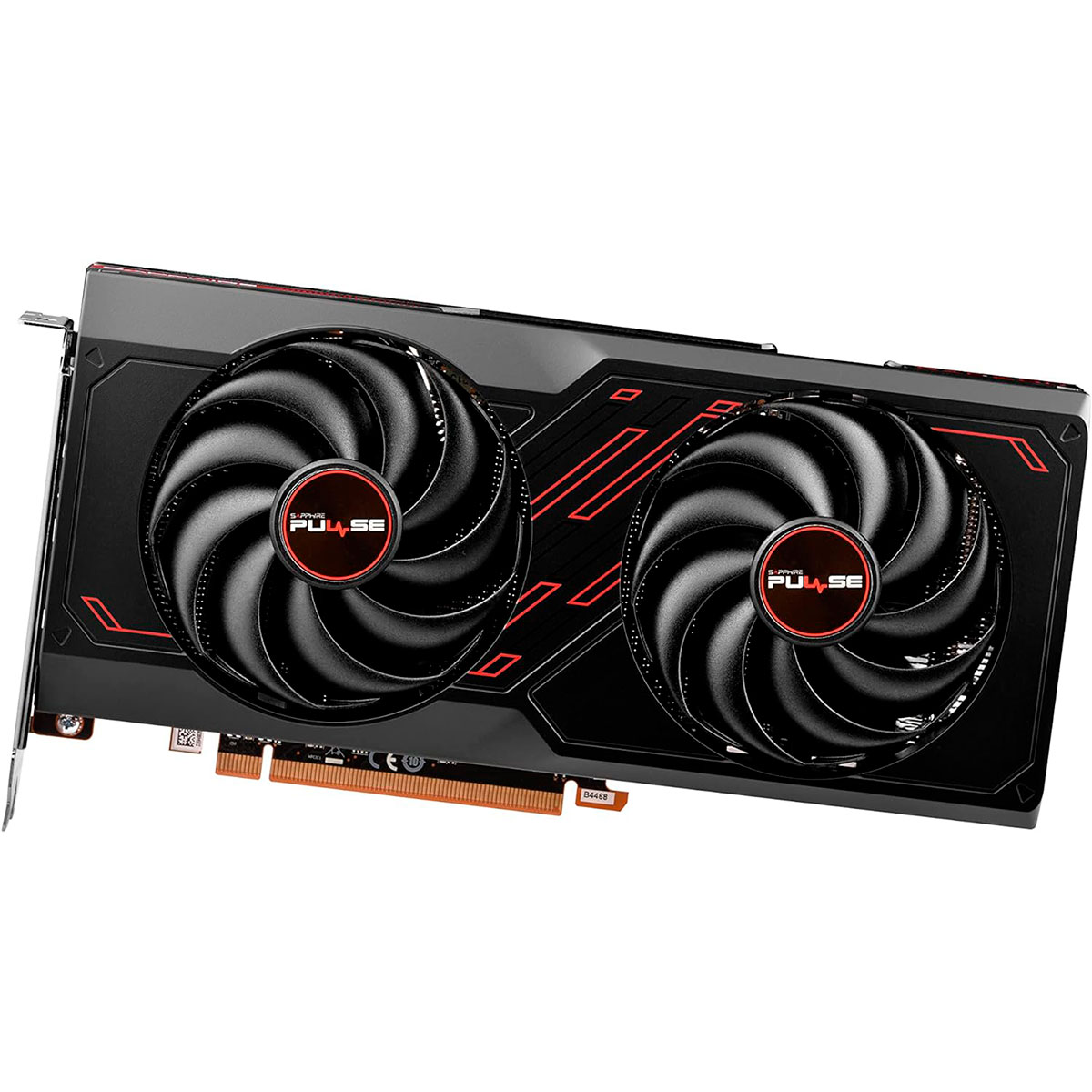

AMD Radeon™ RX 7600 Graphics Card
AMD RDNA™ 3 Architecture
Engine Clock
Boost Clock: Up to 2755 MHz
Game Clock: Up to 2355 MHz
Stream Processors: 2048
Compute Units: 32 CU
Infinity Cache: 32MB
Ray Accelerators: 32
Memory Size-Bus: 8GB-128 bit GDDR6
Memory Clock: 18 Gbps Effective
Displays: Maximum 4 Displays
Resolution
HDMI™: 7680×4320
DisplayPort 1.4: 7680×4320
Interface: PCI-Express 4.0 x8
Output: 1x HDMI - 3x DisplayPort
BIOS Support: UEFI
Game Index: 1080P Ultimate
Cooler Type: 2 Fans
Form Factor: 2 slot ATX
Dimension: 240(L)X 107.1(W)X 44.07 (H)mm
Power Consumption: 85W Total Board Power
System Requirement
Minimum 550 Watt Power Supply
1 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
