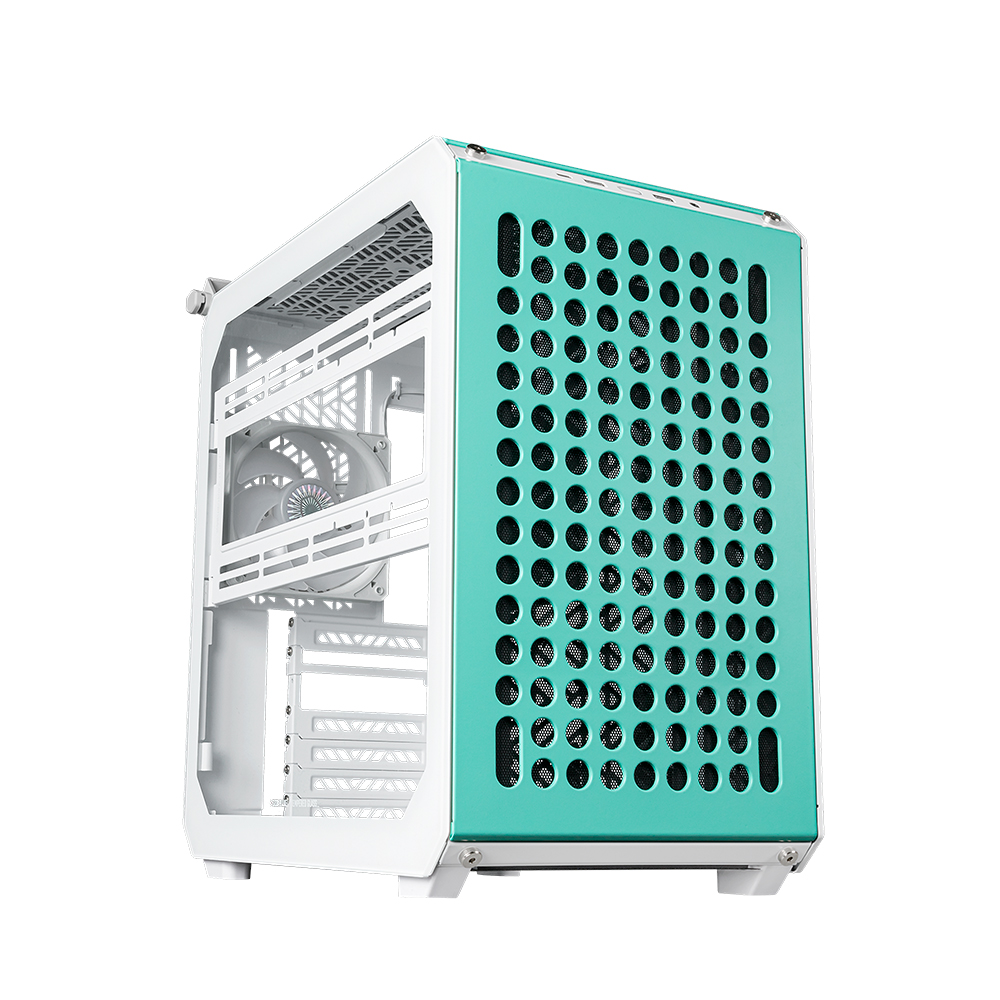

odel Number Q500-DGNN-S00

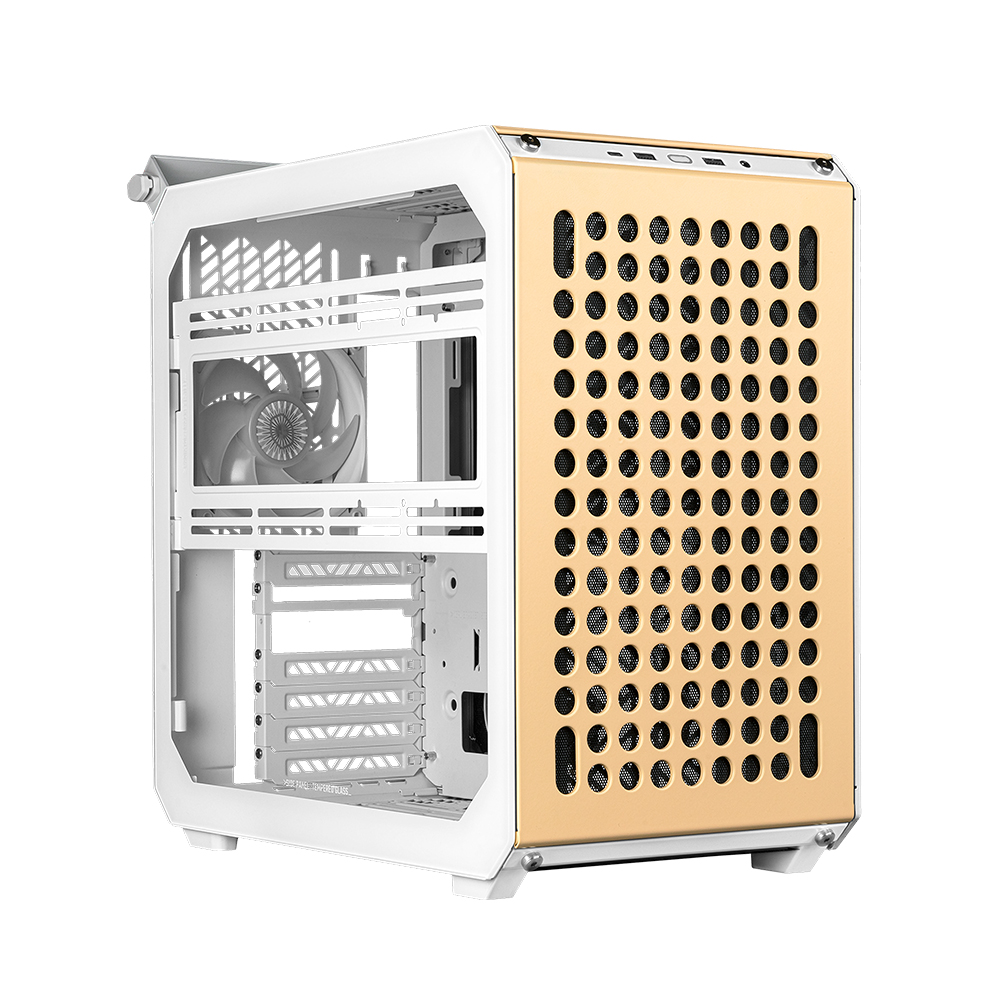

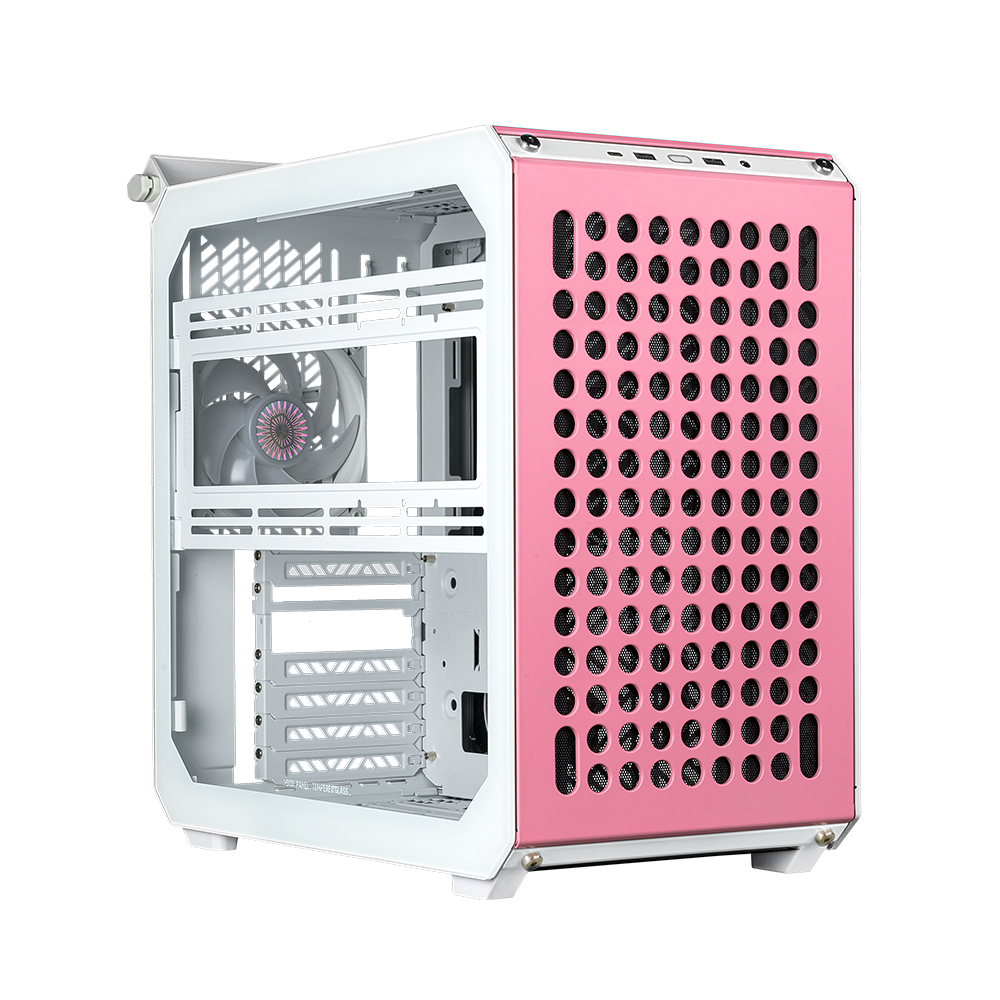

Exterior Color 3x set: Mint Pink Cream
Materials - Exterior Steel Plastic Tempered Glass
Materials - Left Side Panel Grey TG + Steel
Dimensions (L x W x H) 406 x 231 x 415mm (Incl. Protrusions) 380 x 231 x 381mm (excl. Protrusions)
Volume 33.44L (excl. Protrusions)
Motherboard Support ITX Micro ATX ATX E-ATX (Width up to 296mm w- SFX PSU up to 273 w- ATX PSU)

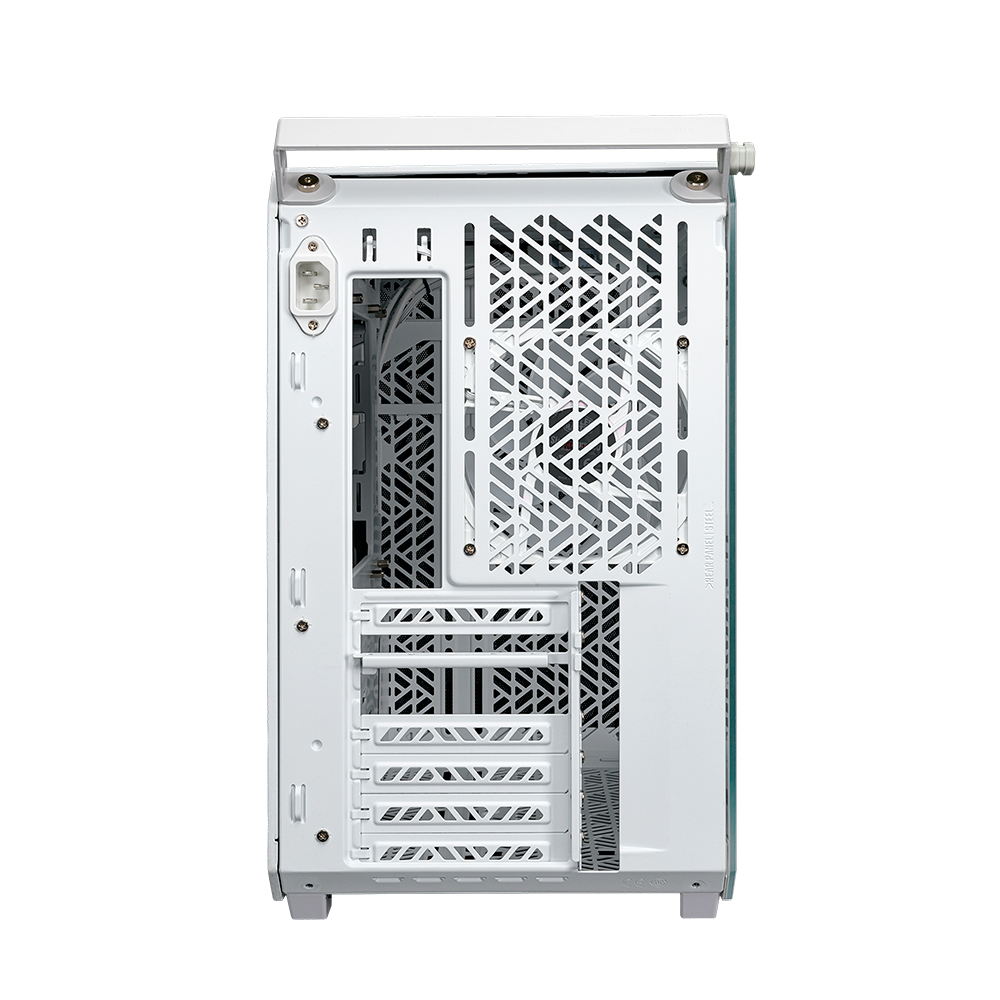

Expansion Slots 7
3.5a Drive Bays 4
2.5a Drive Bays 3

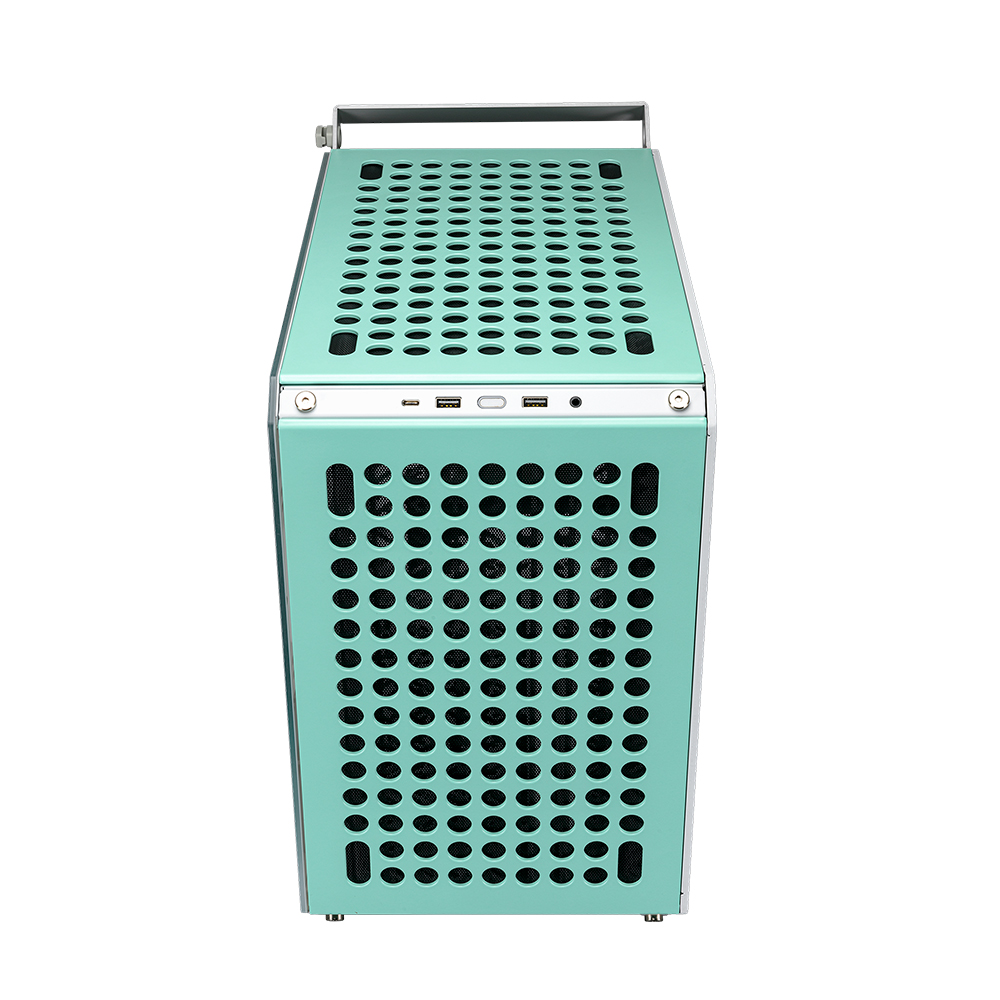

I-O Panel - USB Ports 2x USB 3.2 Gen 1 Type A 1x USB 3.2 Gen 2 x 2 Type C
I-O Panel - Audio In - Out 1x 3.5mm Combo
Pre-installed Fans - Rear 1x 120mm (1800 RPM) SF ARGB White PWM
Fan Support - Front 1x 120-140mm (x2 if PSU is mounted in bottom)
Fan Support - Top 2x 120-140mm
Fan Support - Rear 1x 120mm
Fan Support - Bottom 2x 120-140mm
Fan Support - Left side 2x 120-140mm
Radiator Support - Front 120mm 140mm (240-280mm w- PSU in bottom)
Radiator Support - Top 120mm 140mm 240mm 280mm (280mm can be used within 53mm thickness)
Radiator Support - Rear 120mm
Radiator Support - Bottom 120mm 140mm 240mm 280mm
Radiator Support - Left side 120mm 140mm 240mm 280mm
Clearance - CPU Cooler 164mm-172mm (Remove the water cooling bracket)
Clearance - PSU 173mm to first GPU slot 216 maximum space (w-o cable management space) 332mm space mounted in bottom (w-o cable management space)
Clearance - GFX 365mm

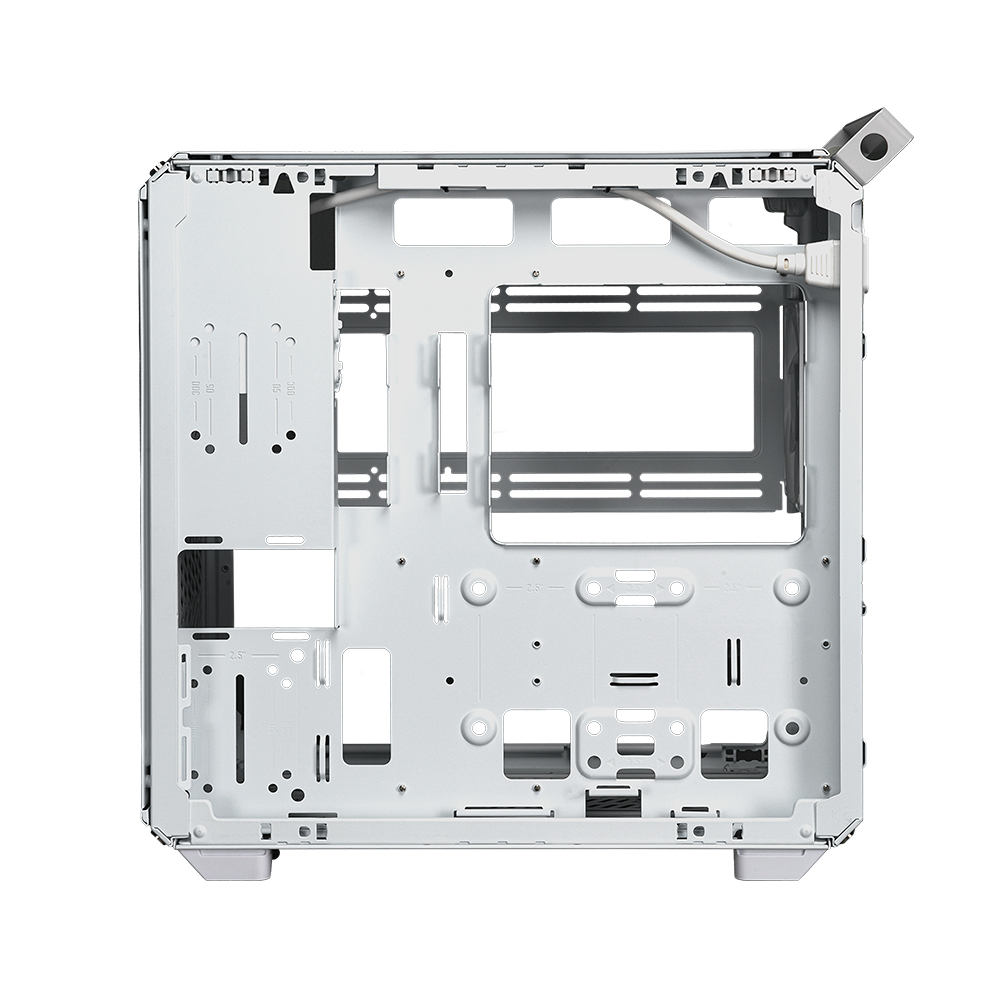

Cable Routing - Behind Motherboard Tray 29-32mm
Handle Mint x 1 Grey x 1
Gem Mini Grey x 1
Accessory Hook x 2
Dust Filters Front Top Bottom Right side
Power Supply Support SFX-L SFX ATX
Series QUBE Series
Size Mid Tower
