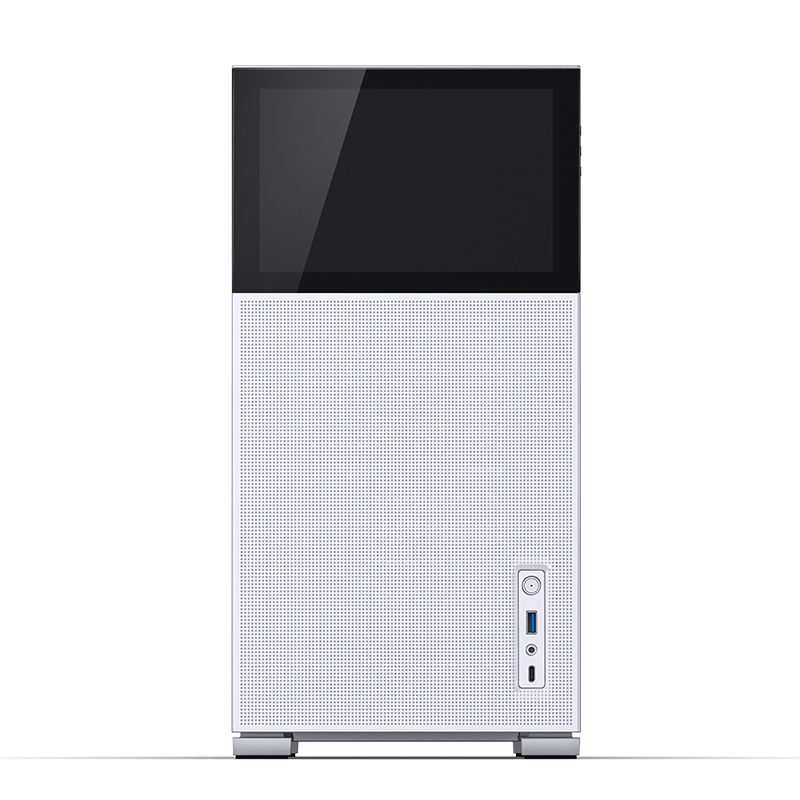

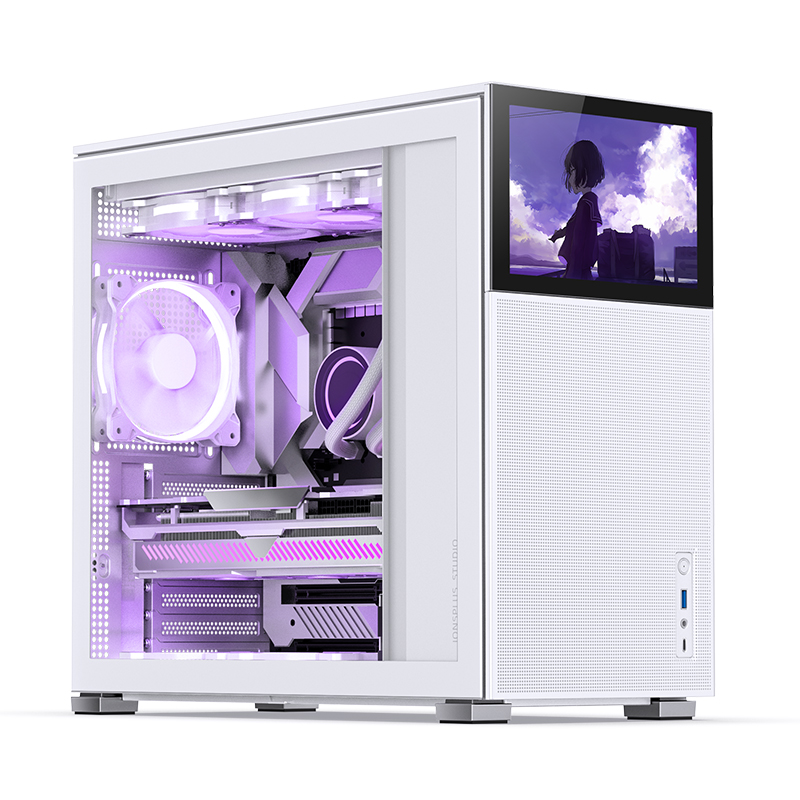

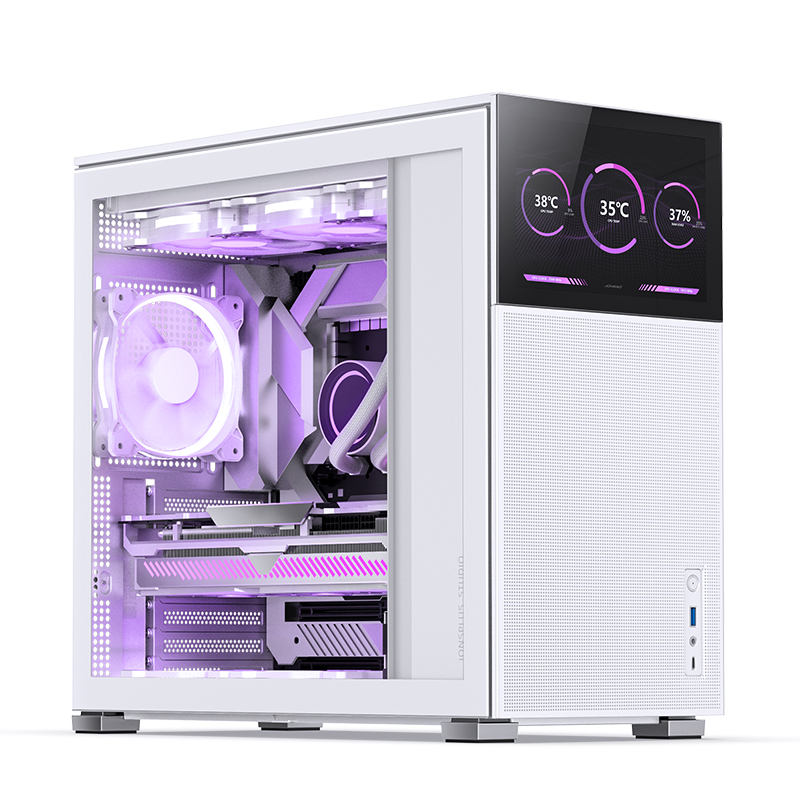

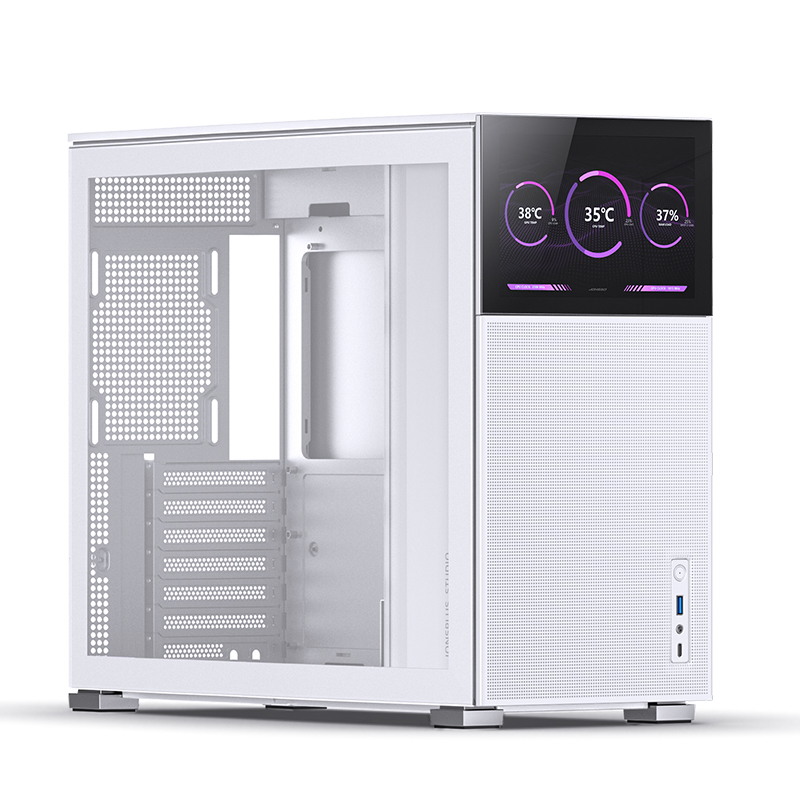

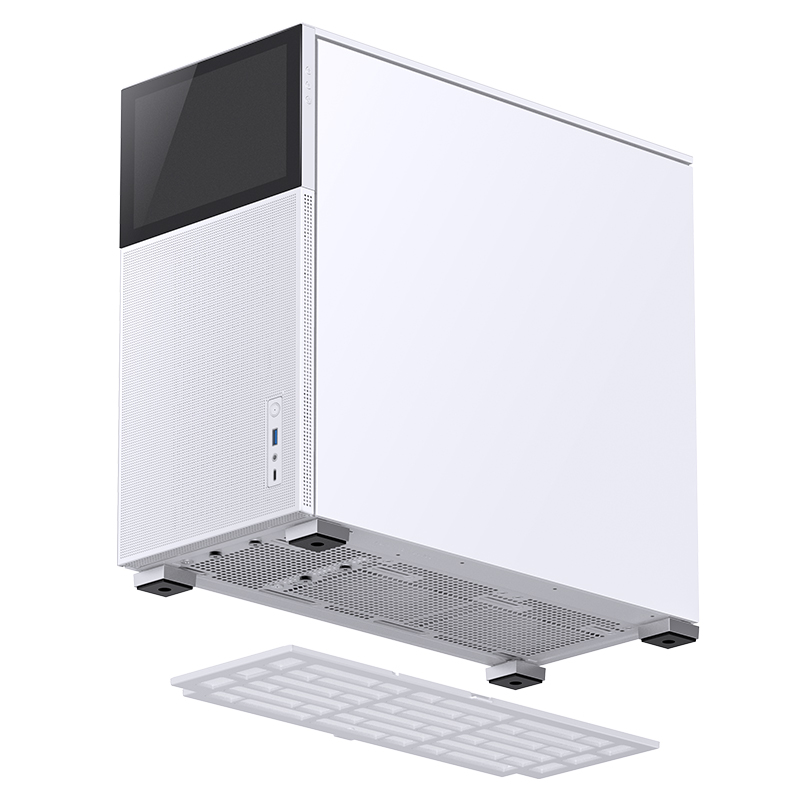

Screen display spec
• Dimension: 24.6mm(W) * 131.7mm(H) * 205.3mm(L)
• Display size: 8 Color TFT-LCD
• Colors: 16.7M
• Resolution: 1280*800
• Response Time: 30ms(Typ.)
• Brightness: 300cd-m2(Typ.)
• Contrast Ratio: 1000(Typ.)
• I-O: MINI-HDMI*1(Video Signal) TYPE-C*1
• Refresh Rate(max.): 60Hz
• Working Temperture: 0-50

Product Specification

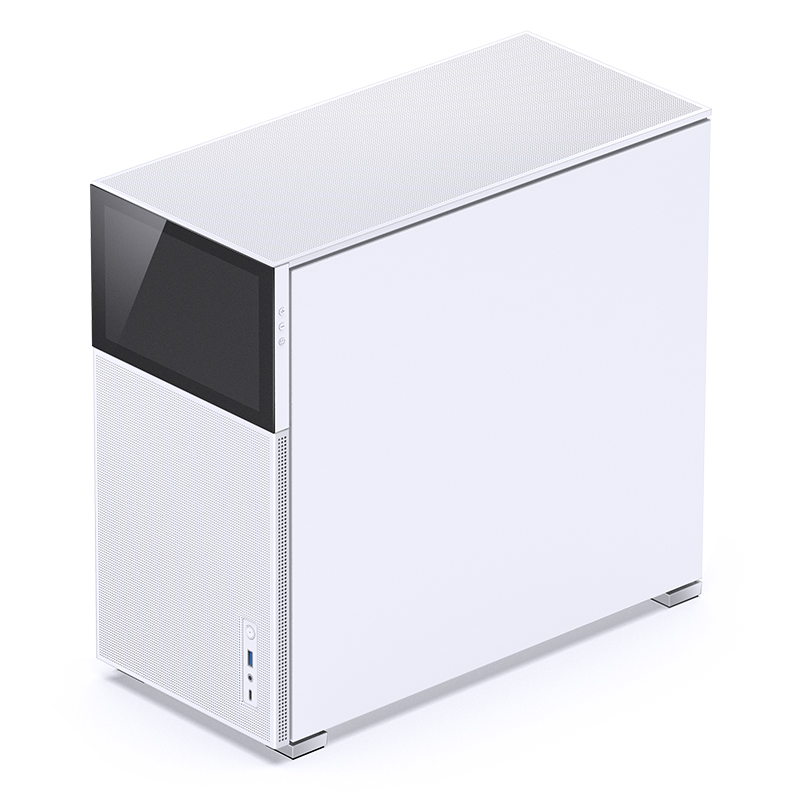

• Model :D41 MESH SCREEN WHITE

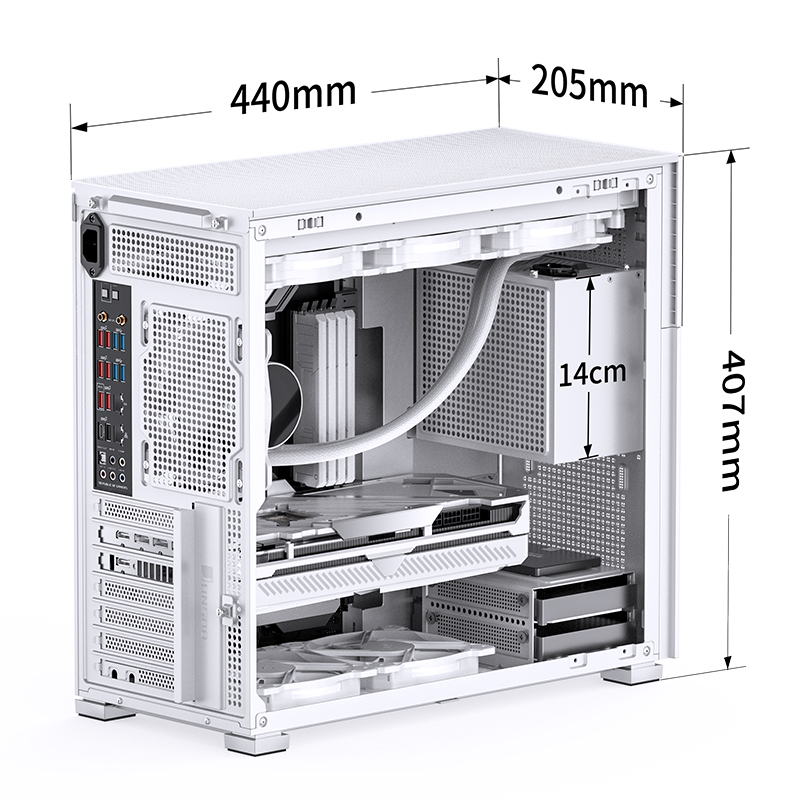

• Dimension: 205mm (W) * 392mm(H) *440mm(D) (Vol: 35.4L)

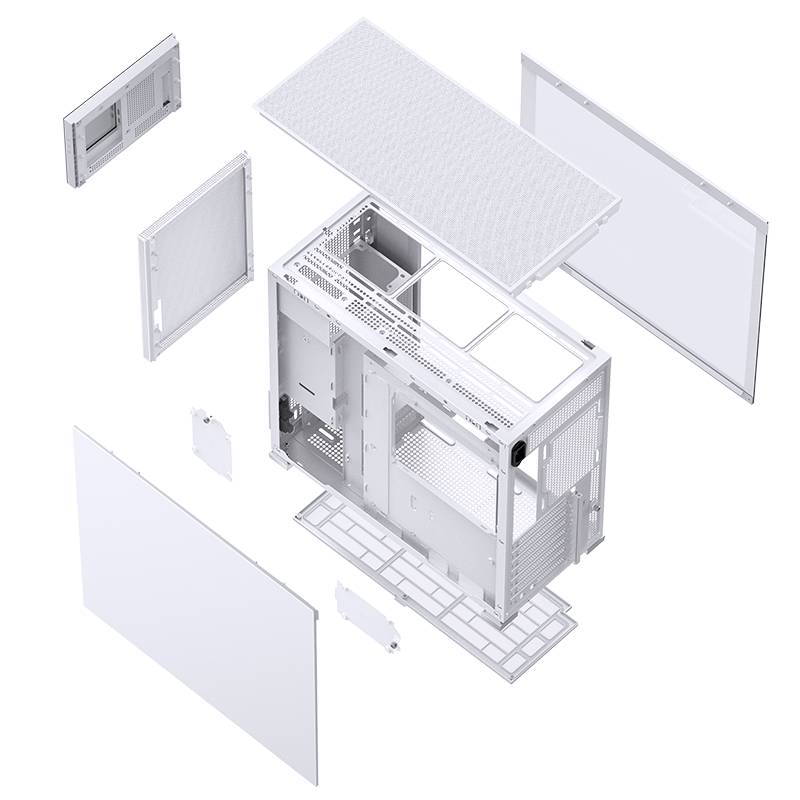

• Material: 0.6mm + 0.7mm steel panel

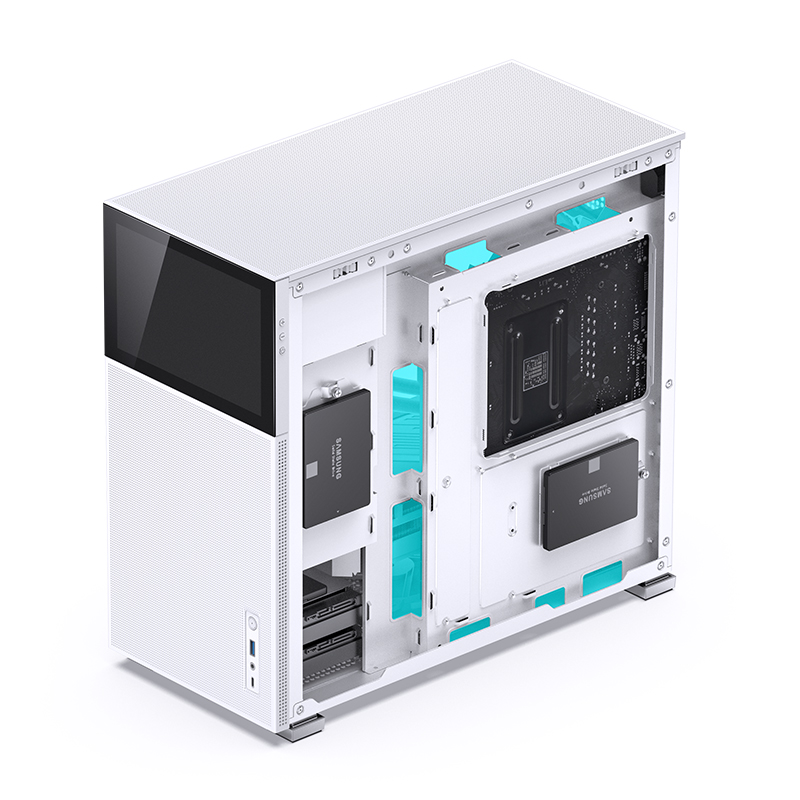

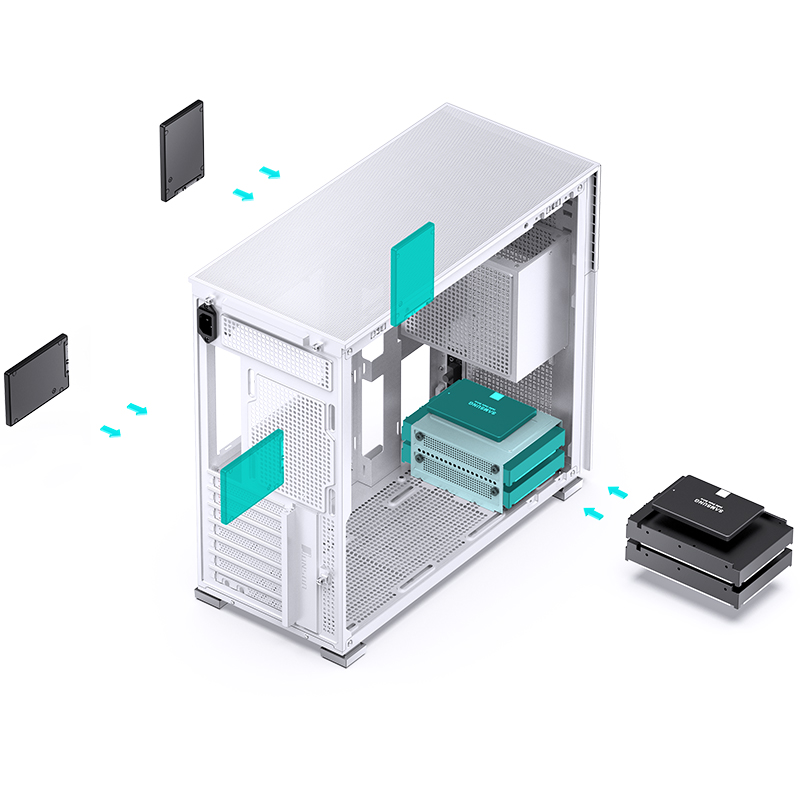

• Drive Bay: 2.5 SSD*3 + 3.5 HDD*2
• Motherboard: ATX - M-ATX

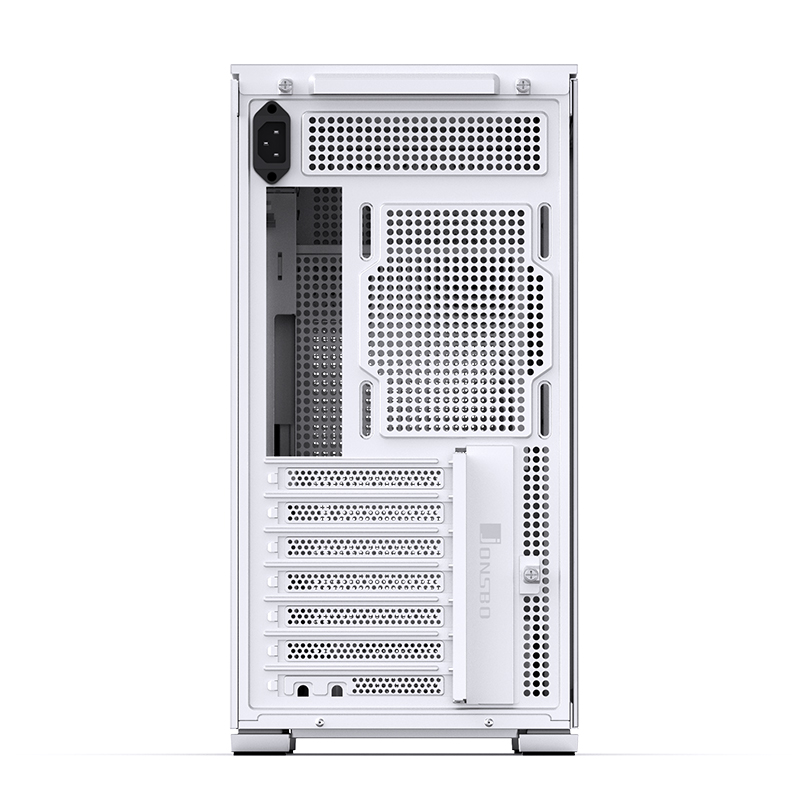

• PCI expansion slots: 7

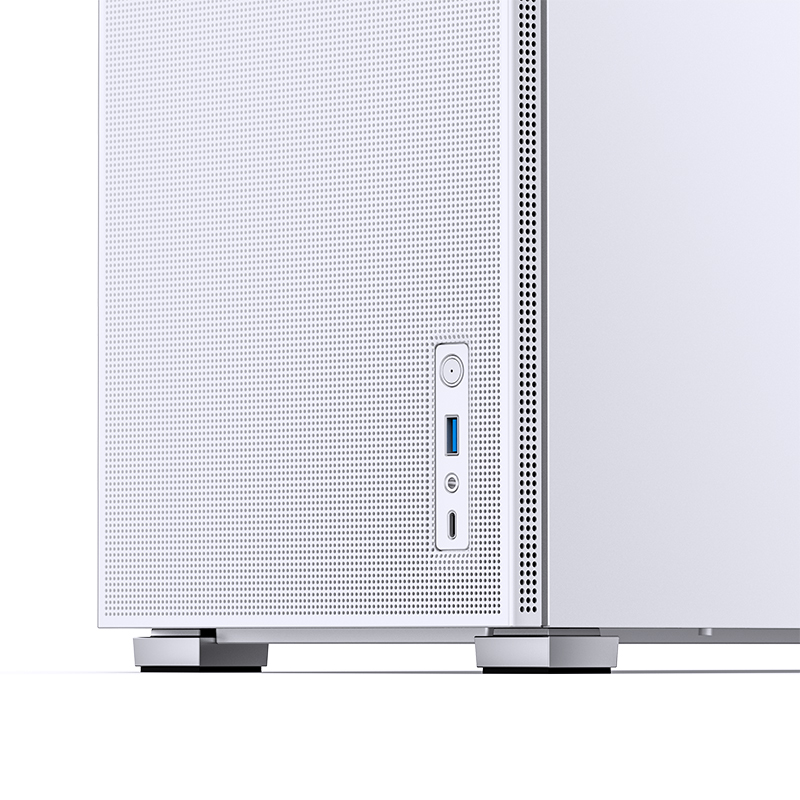

• Front I-O: USB3.2 Gen 2 Type-C*1 - USB3.0*1 -Audio - Mic*1
• Weight: Net 6.78KG
• Power supply support: ATX

Clearence
• CPU cooler support: 168mm
• Graphics card support: 330-400mm

Fan mounting position
• Top 120mm*3 or 140mm*2
• Rear 120*1mm
• Bottom 120mm*3 or 140mm*2
• Front 120mm*1

Radiator support
• Top: 240-280-360*1
• Rear: 120*1
• Bottom: 240-360*1
