Specification
• Product size: 39mm(W) x 282mm(H) x 233mm(L)
• Case Stand height: 8.5 mm
• PCI slots: Front I-O *TYPE-C(USB3.1 Gen2)2*USB3.01*two in one audio port (Combined 4 pole)
• Weight W: 5.6KG
• Air filter system: oth sides - bottom - rear (pre-installed)

Hardware support specification
• MB support: ITXDTX(170mm*203mm)
• GPU Support: 207 mm (L)*140 MM(H) *48 MM(W)
• Device Support: 1* 3.5”HDD + 2* 2.5”SSD
• Fan mounting position: 1* 12 CM(optional)
• CPU cooler height 158.5 mm

Liquid cooler support
• 120 MM Radiator.Part of the water-cooled cold head may interfere with the cold exhaust fan if the diameter is too large. Generally cold heads with a diameter of 70 mm can be installed. Because the position of the motherboard CPU cannot be unified this size is only for reference.

PSU support
• SFX-SFX-L(If the bottom SSD is not installed it has no effect on the length of the power supply. If the bottom SSD is installed the power support length needs to be within 118 mm)

Main component material
• Handle and rear window handle Artificial leather

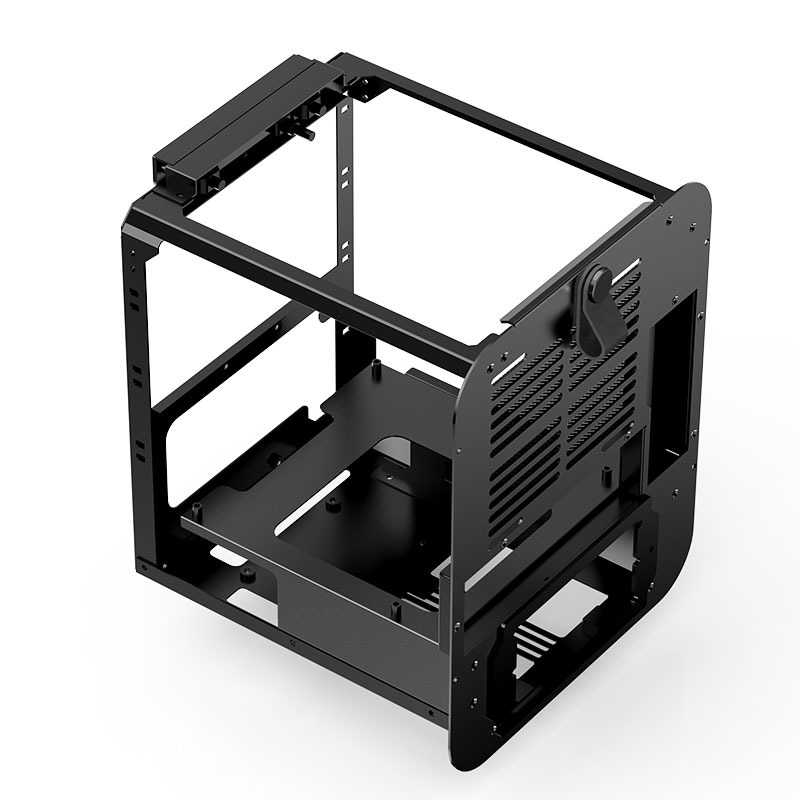

• U-shaped frame 2.0MM aluminum alloy with 100#-120# sandblasting finishing

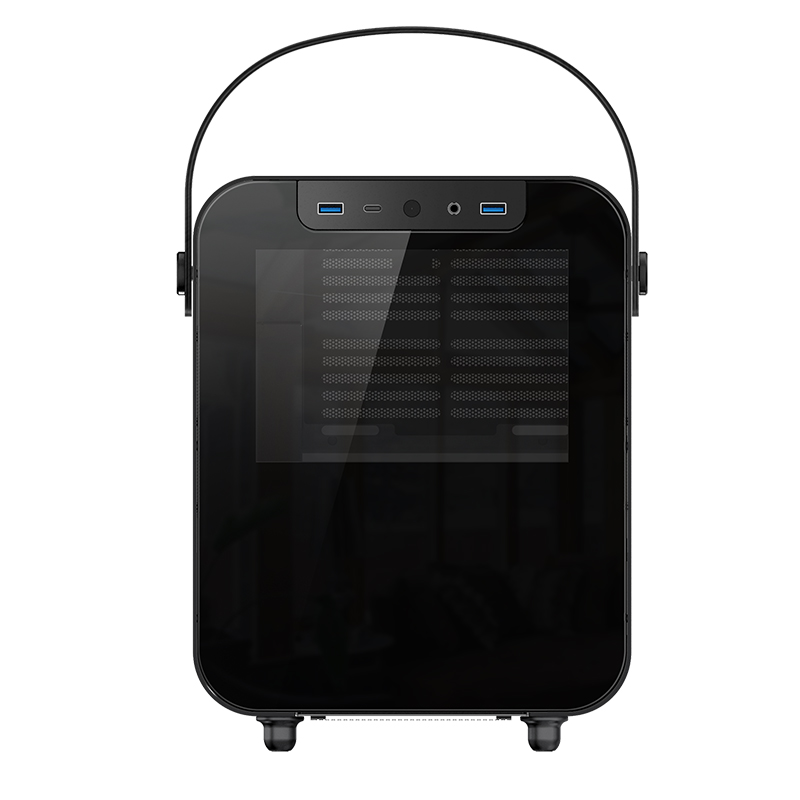

• Front panel 4.0mm tempered glass

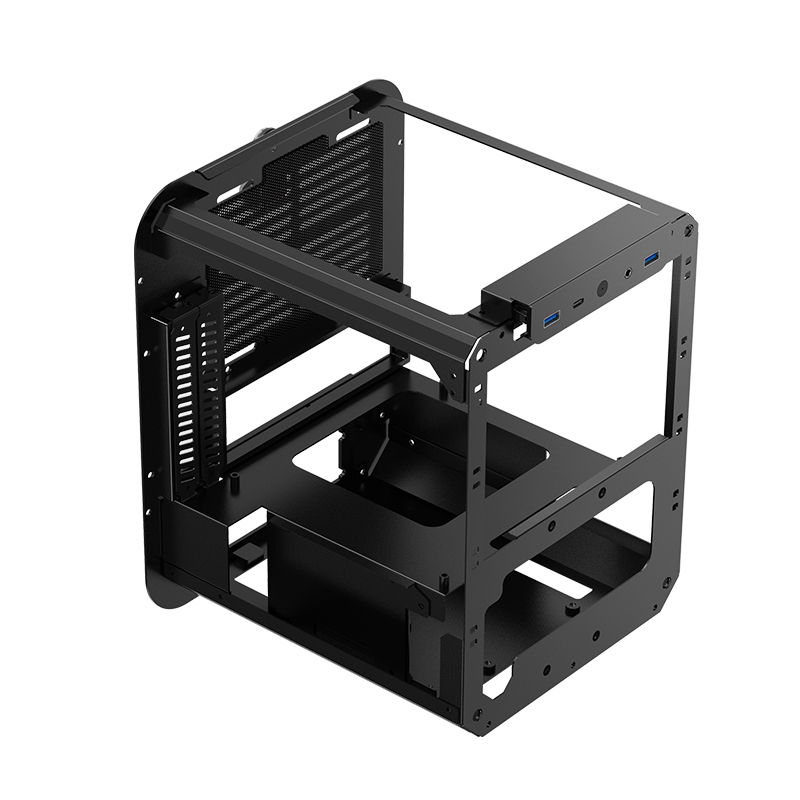

• Inner structure 0.8 +1.0 +1.5mm steel panel with black powder coat finishing
• Case stand Case stand with aluminum alloy
