Exterior Color Titanium Grey
Materials - Exterior Mesh Steel Plastic

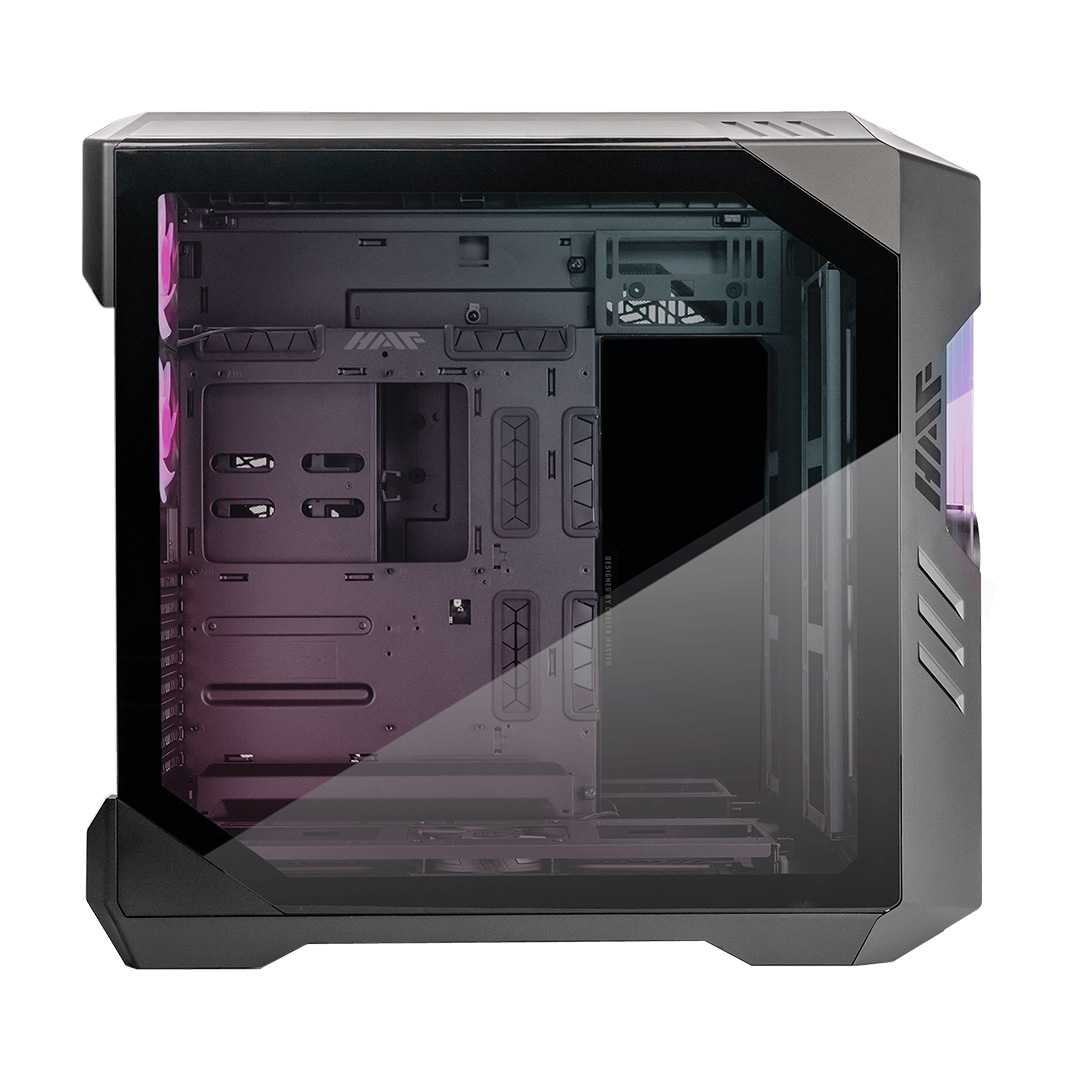

Materials - Left Side Panel Tempered Glass Steel
Dimensions (L x W x H) 556 x 279 x 540 mm (Body Size) 666 x 291 x 626 mm (incl. Protrusions)
Motherboard Support Mini ITX Micro ATX ATX E-ATX SSI CEB SSI EEB
Expansion Slots 8
5.25a Drive Bays N-A

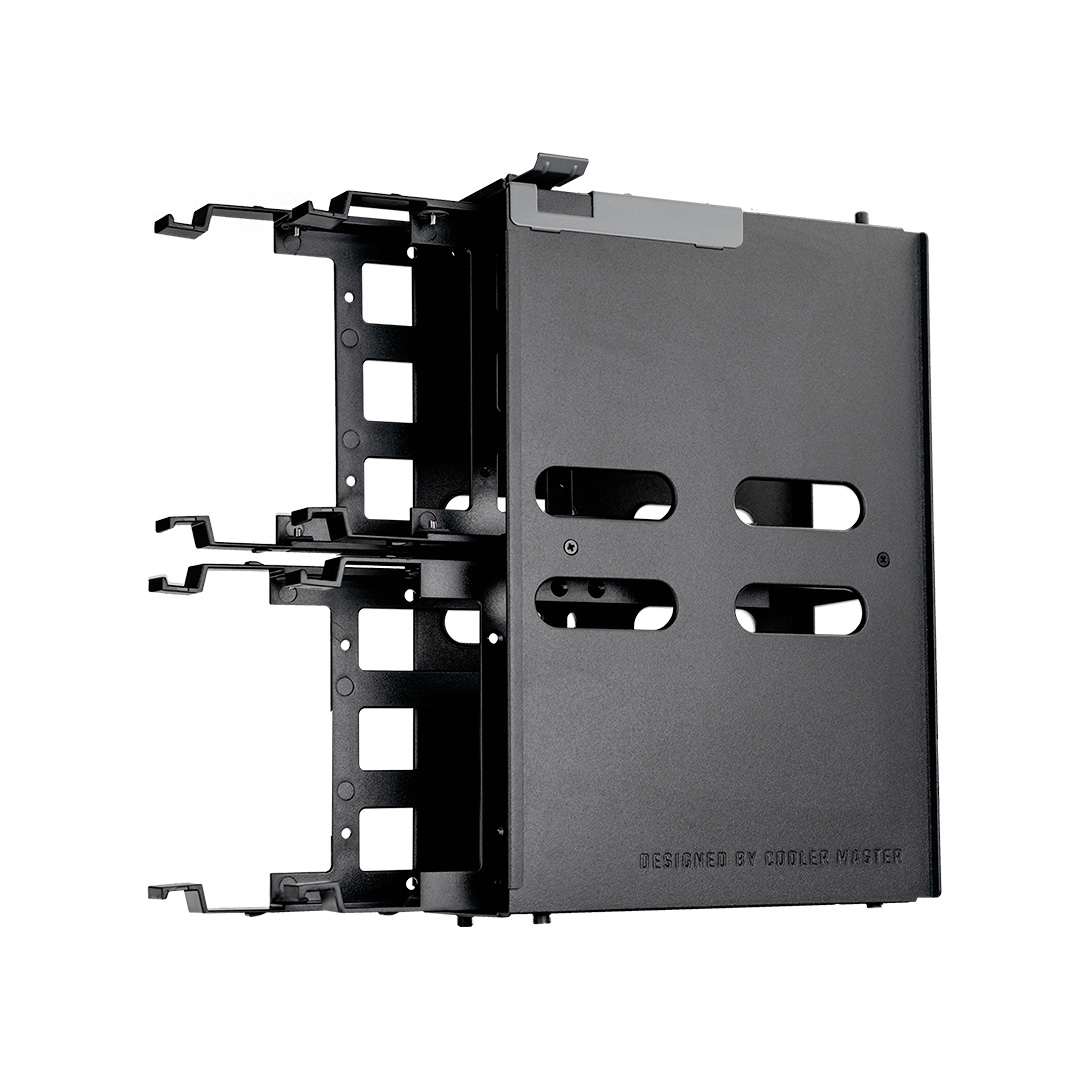

2.5a - 3.5a Drive Bays (Combo) 12
2.5a Drive Bays 12

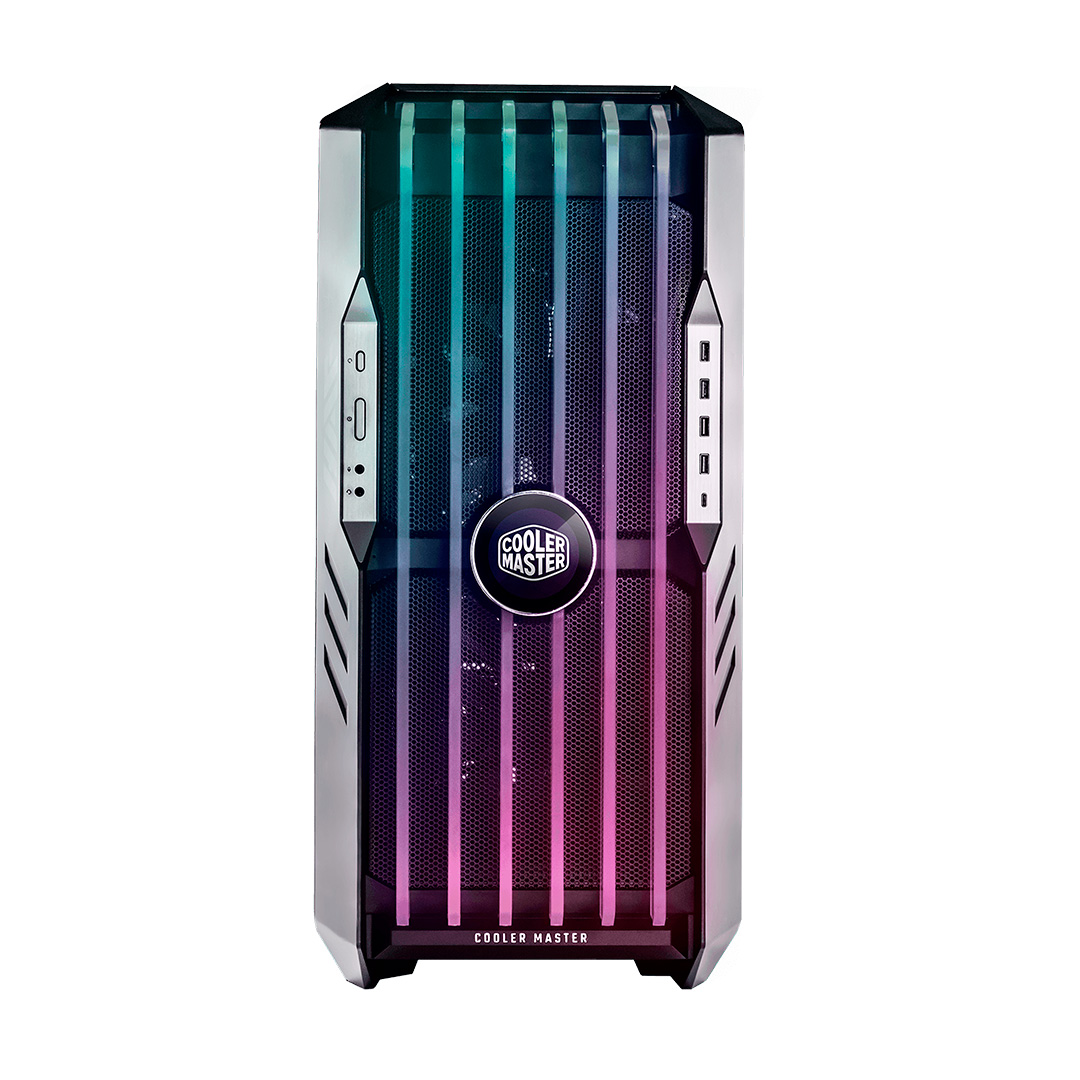

I-O Panel - USB Ports 1x USB 3.2 Gen 2 Type C 4x USB 3.2 Gen 1 (3.0)
I-O Panel - Audio In - Out 1x 3.5mm 4 Poles Audio Jack 1x 3.5mm Mic Jack

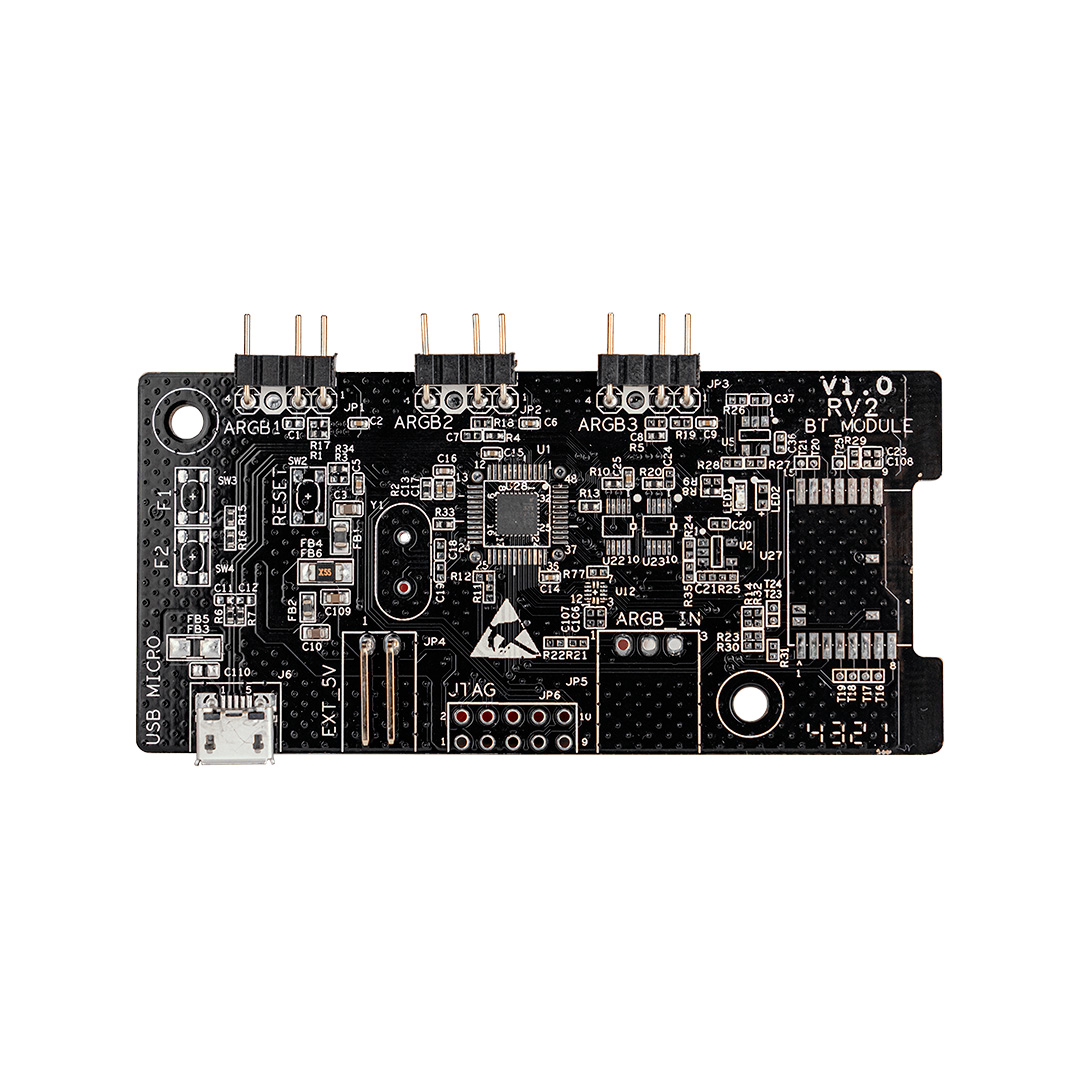

I-O Panel - Other 1x LED Controller A1 (ARGB Gen 2) 1x ARGB-PWM Hub
Pre-installed Fans - Front 2x SickleFlow PWM Performance Ed. 200mm
Pre-installed Fans - Rear 2x SickleFlow PWM ARGB 120mm
Pre-installed Fans - Bottom 1x SickleFlow PWM ARGB 120mm

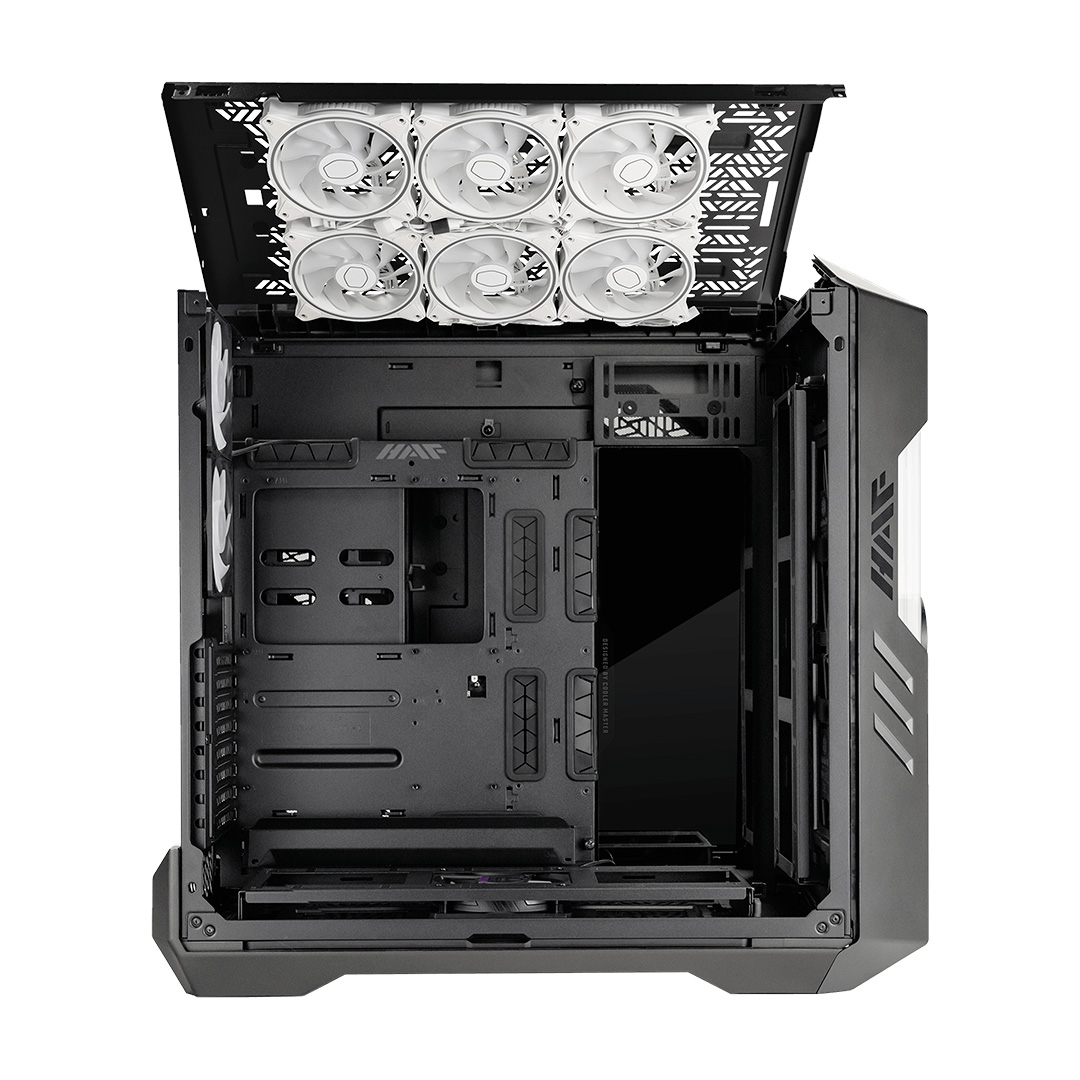

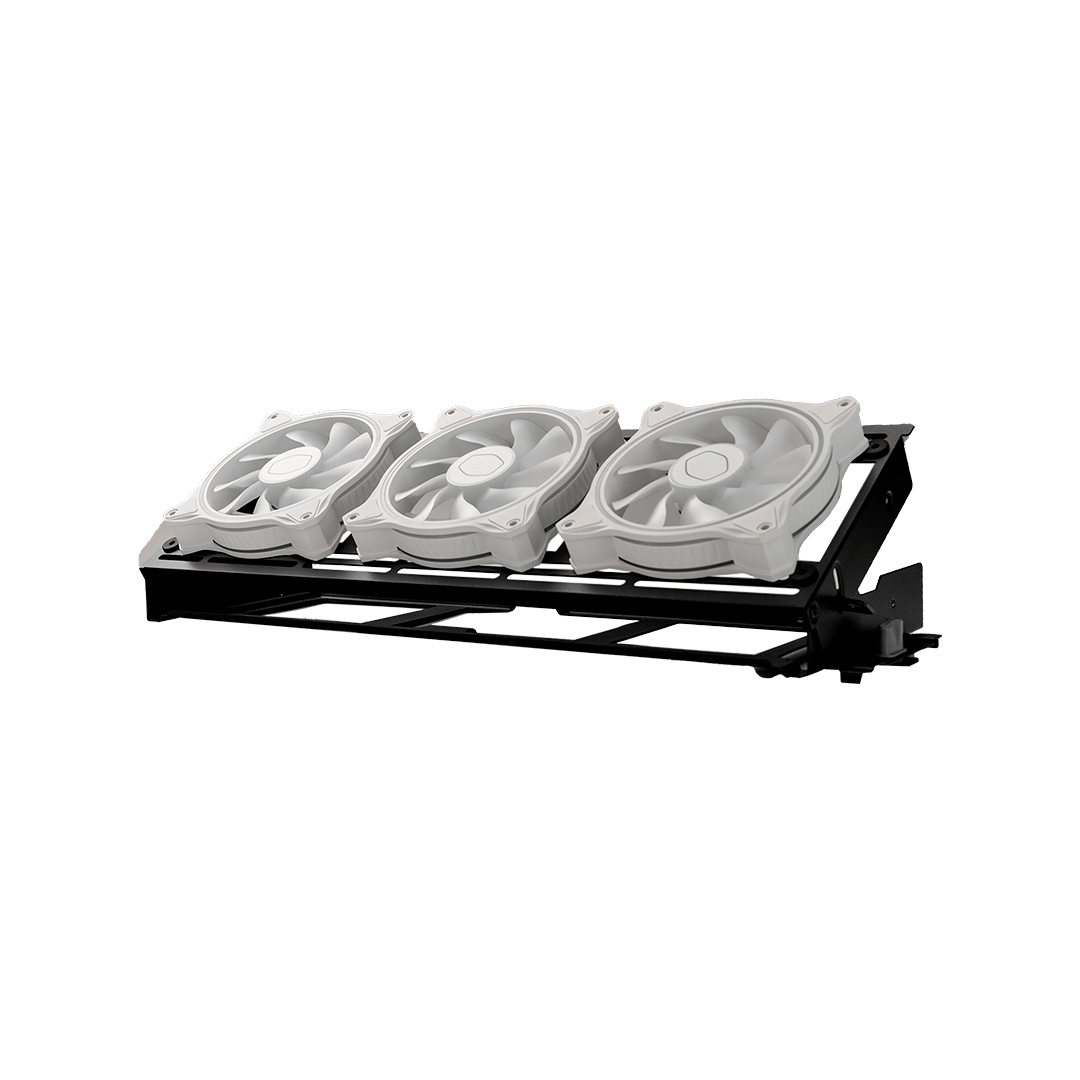

Fan Support - Top 2x 200mm 3x 140mm 6x 120mm (Remove 480mm bracket)
Fan Support - Front 2x 200mm 3x 120-140mm
Fan Support - Rear 2x 120mm
Fan Support - Bottom 3x 120-140mm
Fan Support - Side 4x 120mm - 3x 140mm
Radiator Support - Top Up to 2x 360mm - 1x 420mm
Radiator Support - Front Up to 420-360mm
Radiator Support - Rear Up to 240mm
Radiator Support - Bottom Up to 420-360mm
Radiator Support - Side Up to 480-420mm
Clearance - CPU Cooler 166mm - 6.53 inch
Clearance - PSU 200mm - 7.87a
Clearance - GFX 490mm

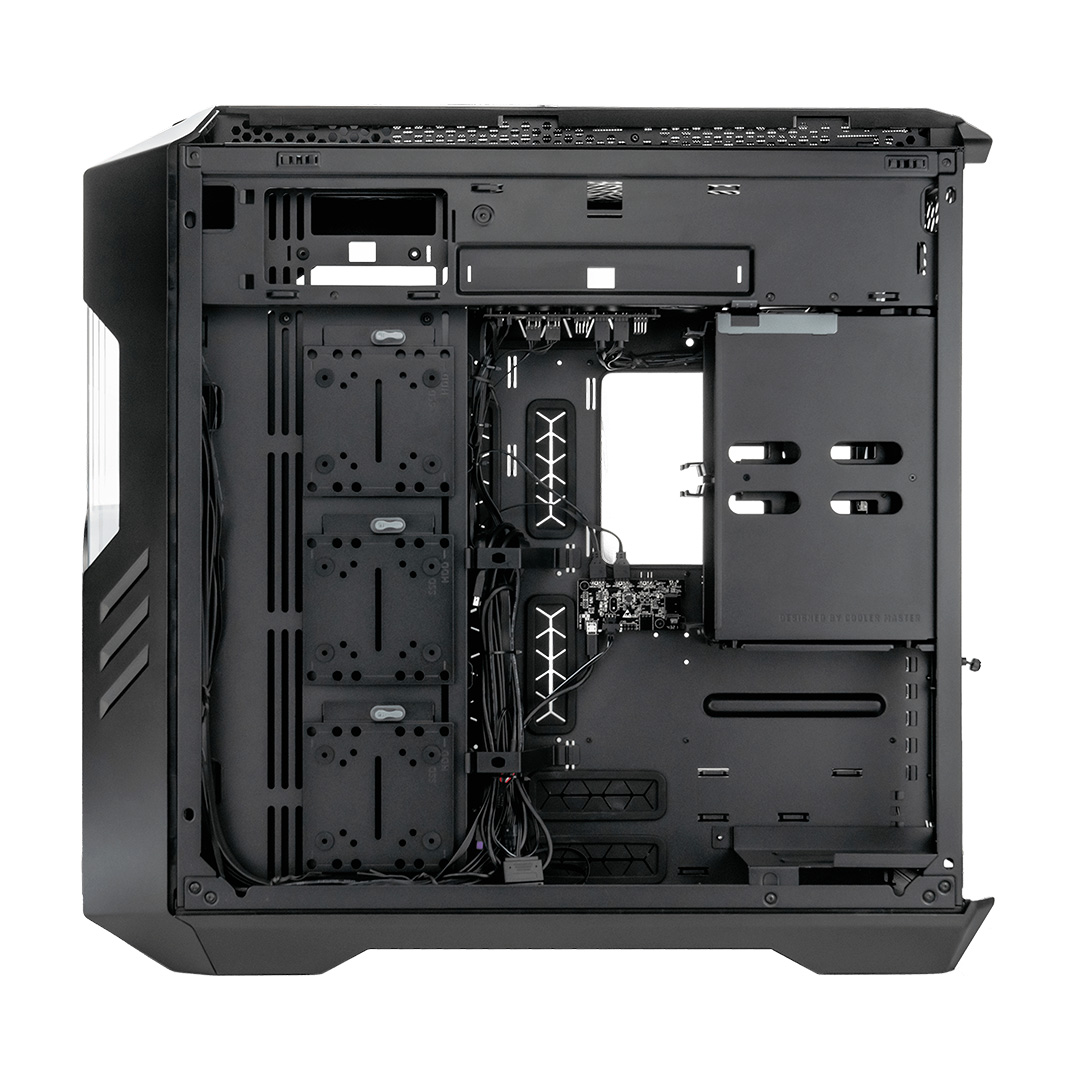

Cable Routing - Behind Motherboard Tray 90-101mm
Included Accessories Universal Graphics Card Holder Kit V2
Dust Filters Front Bottom Side
Power Supply Support Bottom Mount ATX
Note * For regular 30mm thick radiators for thicker please reference user manual.
Series HAF Series
Size Full Tower
