• Intel Form Factor ATX12V
• PFC Type Active PFC
• ATX Standard ATX 3.0
• Dimensions 180 x 150 x 86 mm
• Efficiency 80Plus Gold
• MTBF >120000 hrs @ 25°C
• Protection Features OPP-OVP-UVP-SCP-OCP-OTP
• Hazardous Materials ROHS
• AC Input Range 100-240Vac
• DC Output Voltage +3.3V +5V +12V -12V +5Vsb
• Maximum Load 22A 22A 100A 0.3A 3A
• Combined Load 120W 120W 1200W 3.6W 15W
• Total Output 1200W

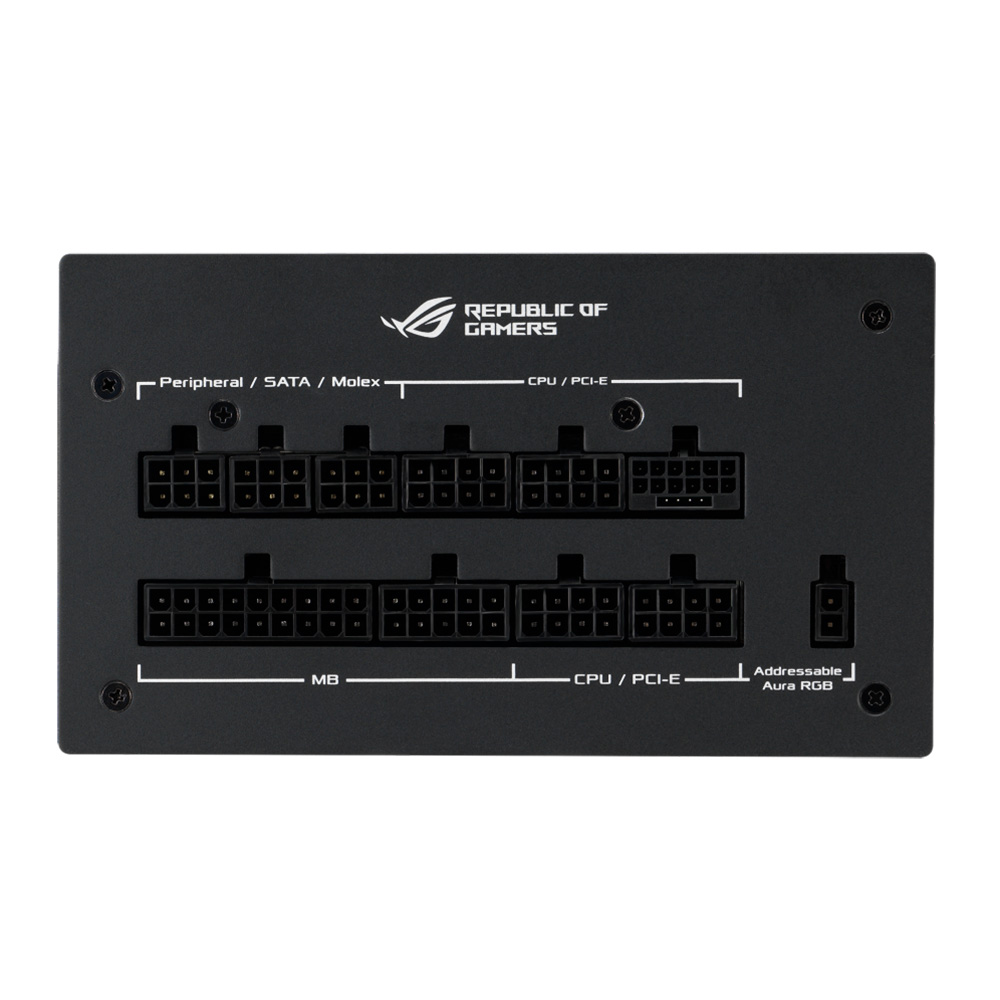

Cable Connectors
• MB 24-20-pin x 1
• CPU 4+4-pin x 2
• PCI-E 16-pin x 1 (both PSU - component side)
• PCI-E 8-pin x 4
• SATA x 5
• PERIPHERAL x 4
• Weight 3.23 kg (single PSU)
• AURA SYNC ARGB
• Cybenetics Noise Level Certification A+
• 0dB Technology Supported. The fan shuts off entirely when the PSU is under certain load

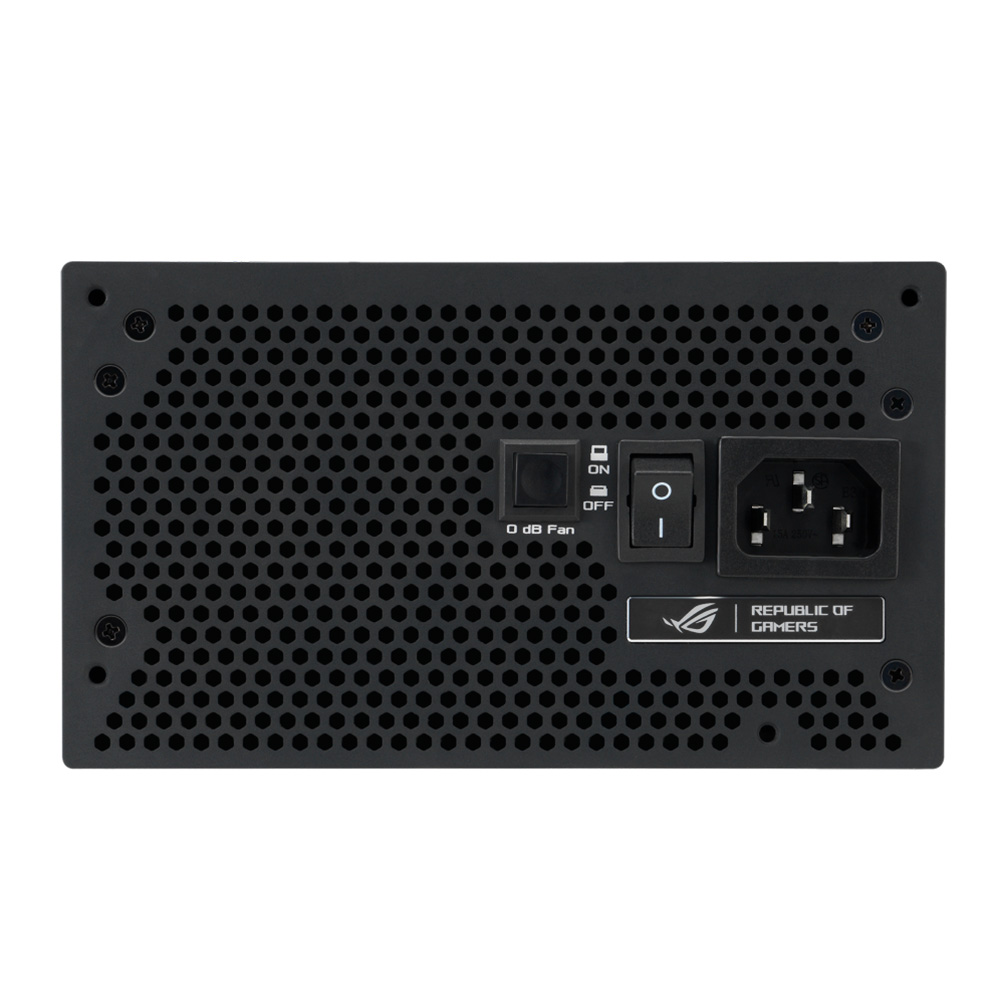

• 0dB Fan Button Yes. When the Button is ON the fan will only spin up when the system reaches a certain load. When the Button is OFF the fan will continuously spin at all load levels.
