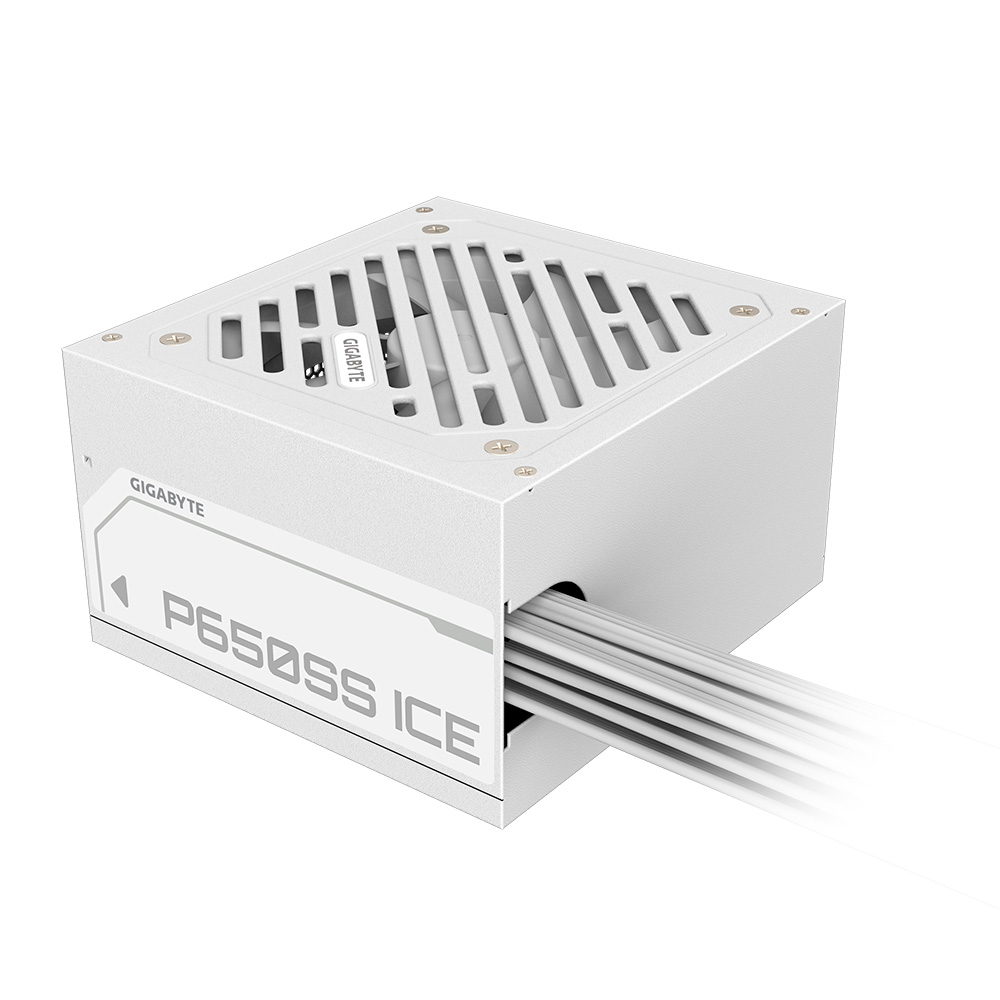

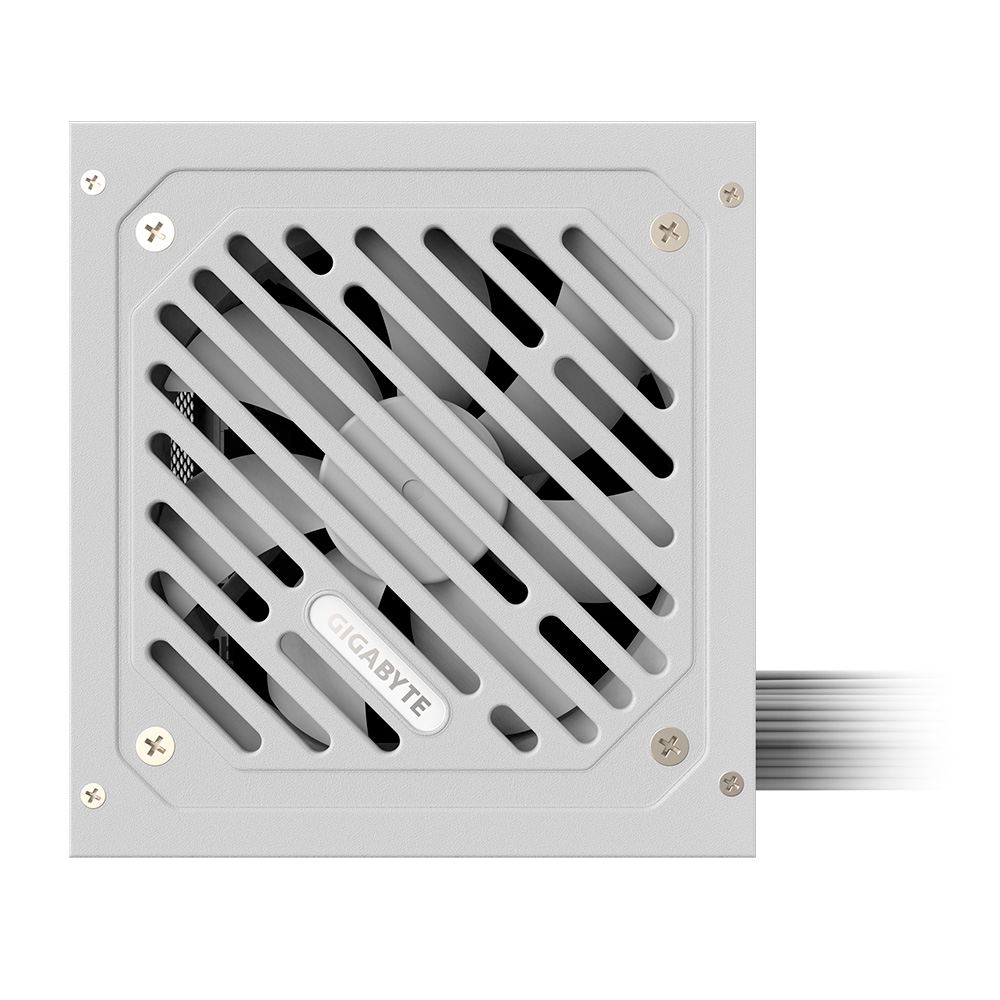

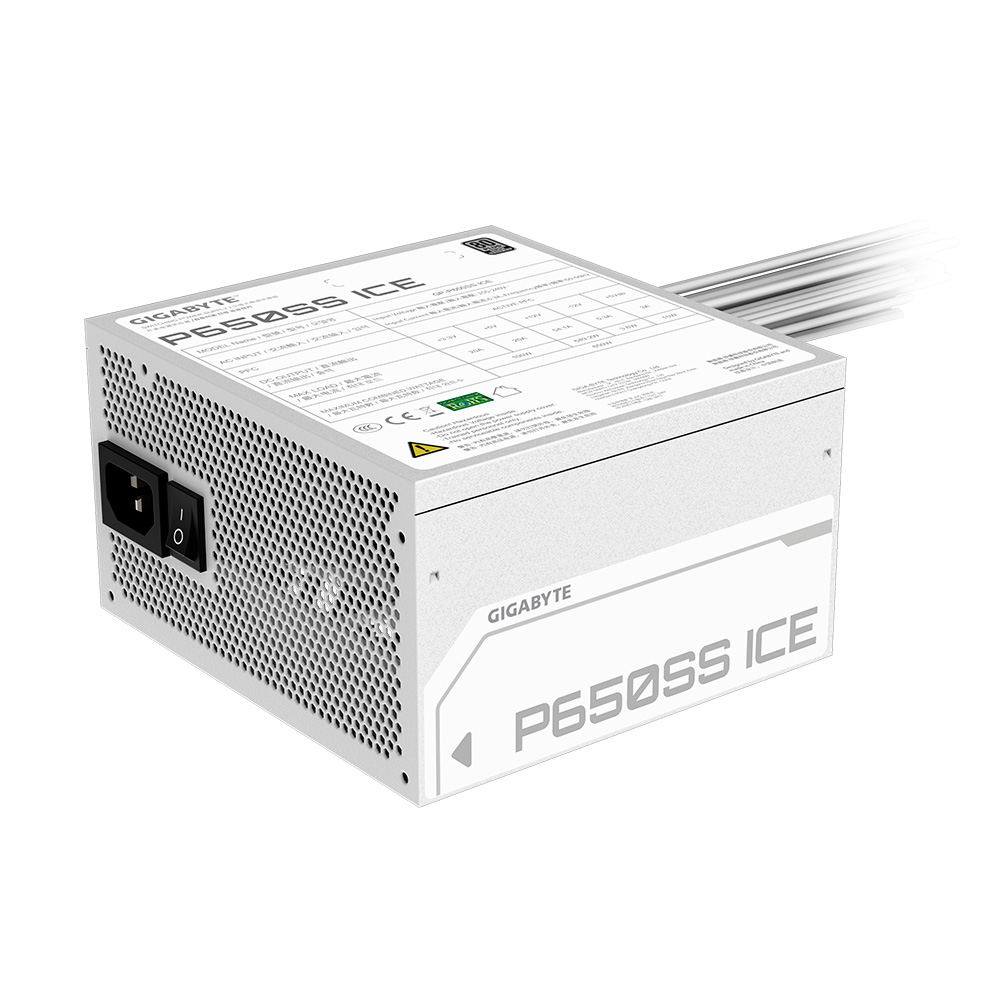

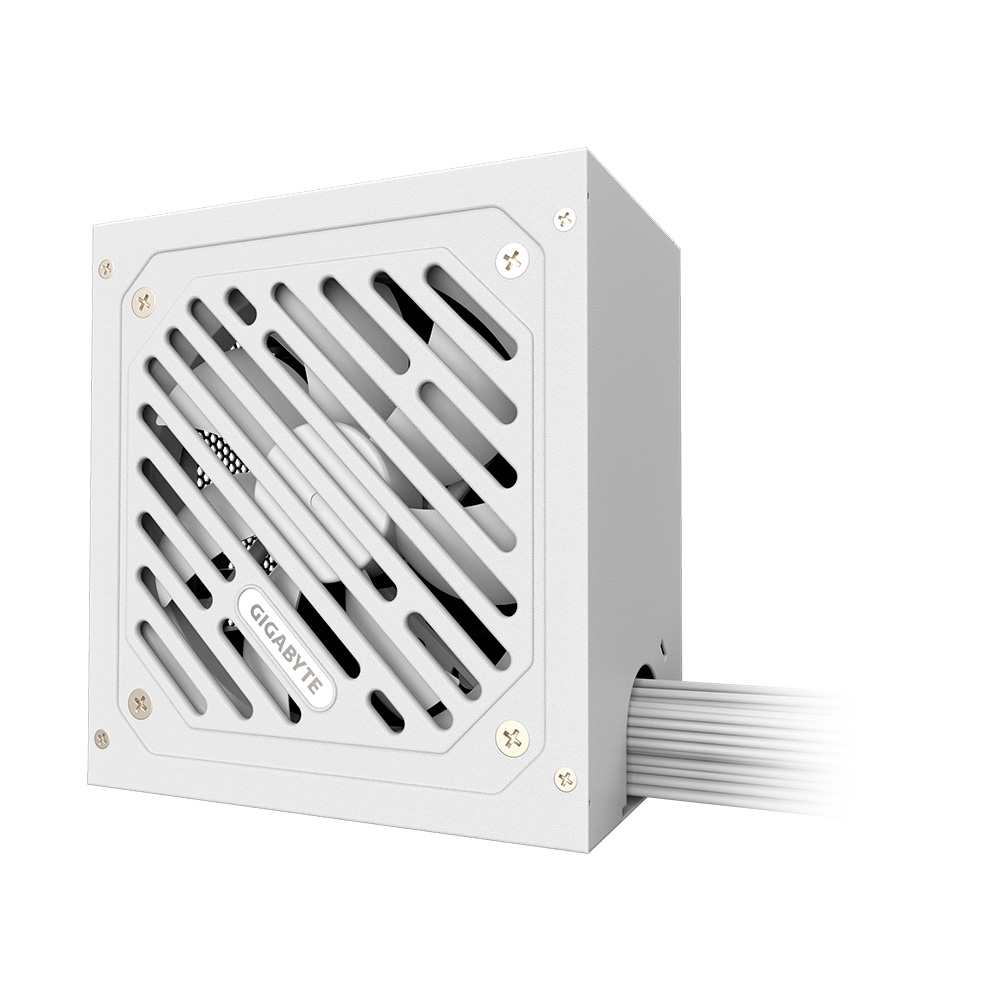

• Model GP-P650SS ICE
• Type Intel Form Factor ATX 12V v3.0
• PFC Active PFC (>0.9 typical)
• Input Voltage 155-240 Vac
• Input Current 6.3A
• Input Frequency 60-50 Hz
• Output Capacity 650W
• Dimension 150 x 140 x 86 mm
• Fan Type 120mm Fluid Dynamic Bearing (FDB) fan
• 80 PLUS Silver
• Efficiency 90-por-ciento at typical load (230V EU)
• MTBF >100000 hours
• Protection OVP-OPP-SCP-UVP-OCP-OTP
• Power Good Signal100-150ms
• Hold Up Time >16ms
• Cable Type Flat All White
Connectors
• ATX-MB 20+4 Pin x 1 : 600mm*1
• CPU-EPS 4+4 Pin x 2 : 650mm+120mm*1
• PCI-e 6+2 Pin x 2 : 600mm*2
• SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1
• SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
