Wireless
Wireless Standards IEEE 802.11n IEEE 802.11g IEEE 802.11b
Frequency 2.4 - 2.4835GHz
WiFi Speeds
11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
Reception Sensitivity
• 270M:
[email protected] PER • 11M:
[email protected] PER
• 130M:
[email protected] PER • 6 M:
[email protected] PER
• 54M:
[email protected] PER • 1 M:
[email protected] PER
Transmission Power <20dBm
Wireless Security WPA-PSK-WPA2-PSK
Wireless Functions WDS bridge
Software
WAN Type Dynamic IP-Static IP-PPPoE-L2TP-PPTP
Management: Parental Control - Access control - Local management - Remote management
DHCP Server
Port Forwarding Virtual server UPnP DMZ Dynamic DNS
DynDNSNO-IP
Firewall Security IP and MAC address binding
Protocols IPv4 - IPv6
Guest Network 2.4GHz guest network
Hardware
Dimensions 147 mm × 115 mm × 34 mm

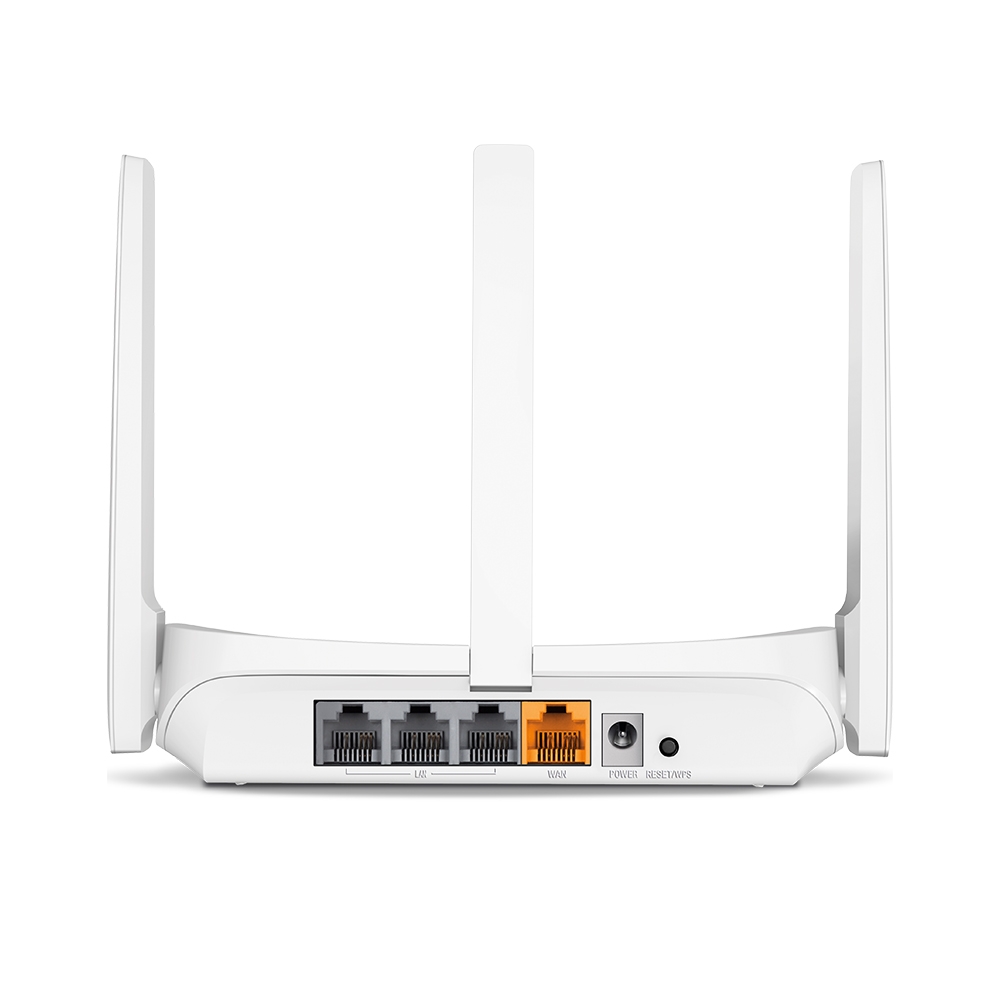

Interfaces
3 10-100Mbps LAN ports
1 10-100Mbps WAN port
Button Reset-WPS button
External Power Supply 5VDC-0.6A
Antenna Type 3 x 5dBi fixed omni directional antennas
