Wireless
Wireless Standards IEEE 802.11b-g-n
Frequency 2.4-2.4835GHz
WiFi Speeds
• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)
Reception Sensitivity
• 270M:
[email protected] PER
• 130M:
[email protected] PER
• 54M:
[email protected] PER
• 11M:
[email protected] PER
• 6 M:
[email protected] PER
• 1 M:
[email protected] PER
Transmission Power <20dBm (EIRP)
Wireless Security WPA-PSK - WPA2-PSK
Wireless Functions Enable-Disable Wireless Radio WDS Bridging
Software
WAN Type Dynamic IP-Static IP-PPPoE-PPTP-L2TP
Management Access Control Local Management Remote Management
DHCP Server
Port Forwarding Virtual Server UPnP DMZ
Firewall Security IP and MAC Address Binding
Protocols IPv4 IPv6
Guest Network 2.4GHz Guest Network
Hardware
Dimensions 114 mm × 94 mm × 26 mm
Button Reset Button
External Power Supply 5V-0.6A
Antenna Type 2 * 5dBi

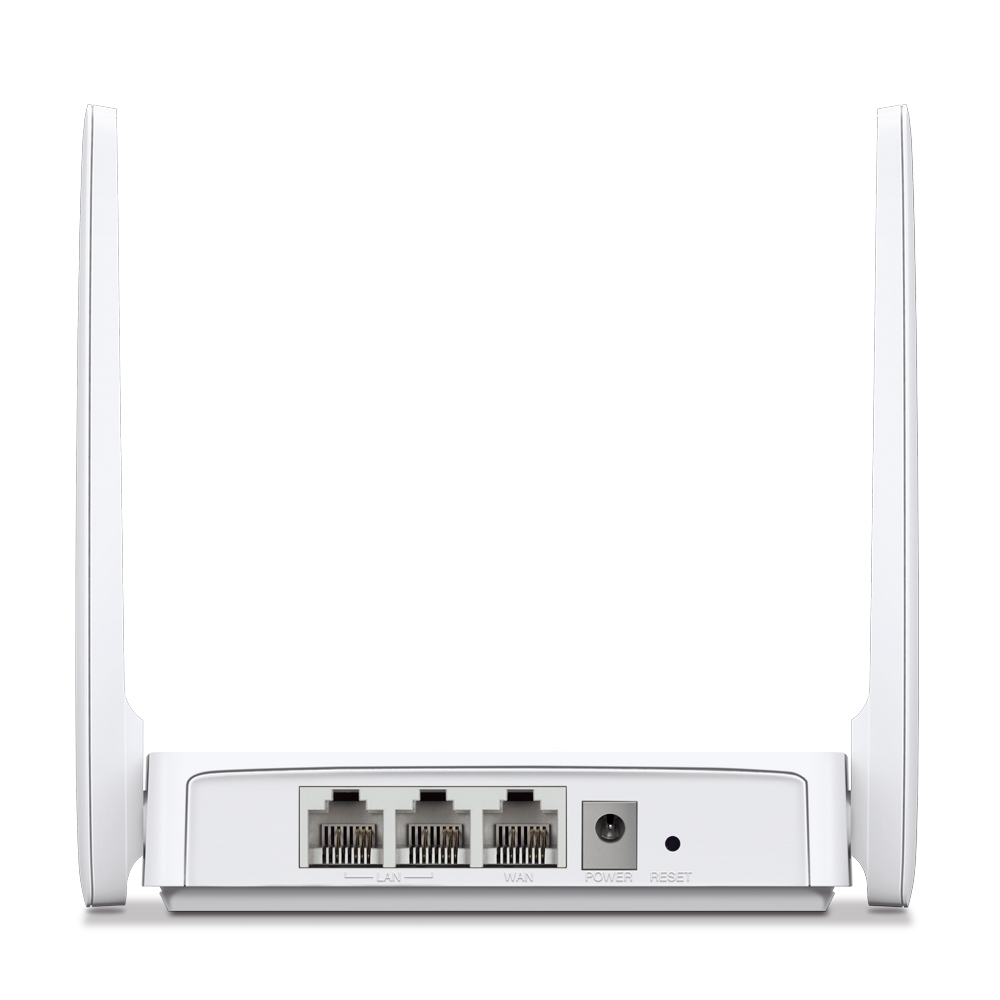

Ethernet Ports
2*10-100Mbps LAN Ports -
1*10-100Mbps WAN Port
